9H-150HE

Detail

Length : 246 mm
Weight : 2.7 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 31 cc
Max. Output : 14.01 tons / 124.6 kN

■ Crimping Capacity :
For non-insulated terminals and sleeves up to 150 mm²
With indentors 14, 22, 38~70 and 80~150 mm²

■ Features :
Light weight, compact and slim design.
Rotary nest for easy setting.
Operated by are hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

■ Accessories :

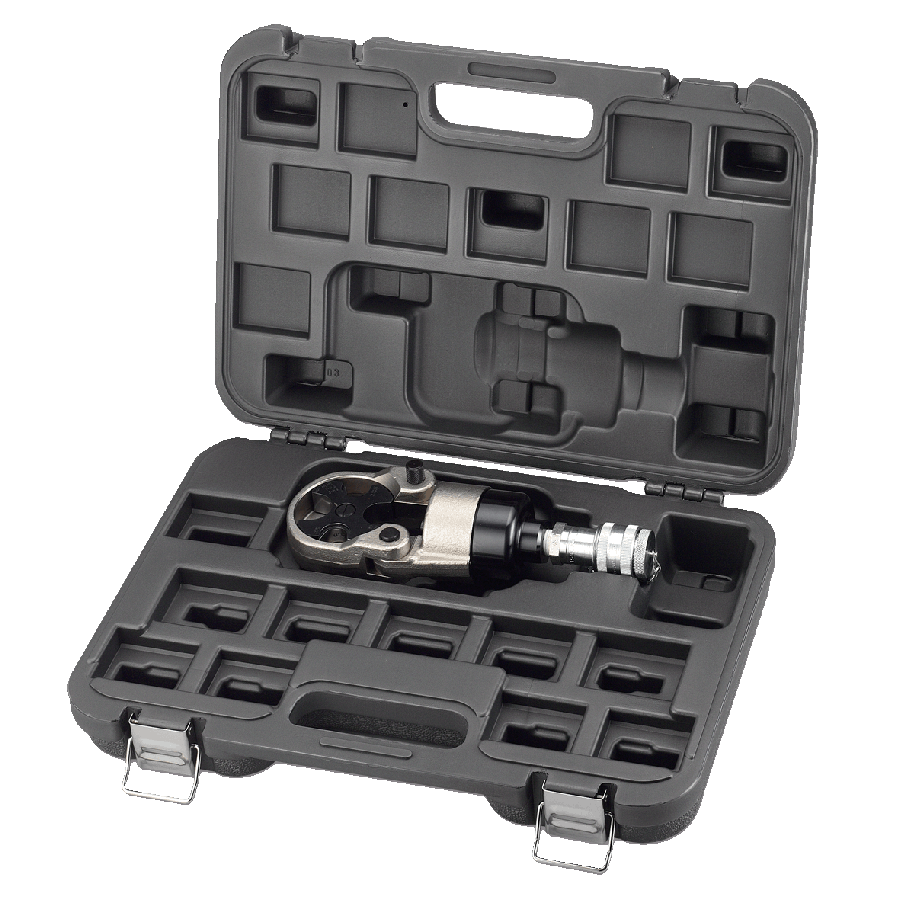

Plastic carrying case
