EP-200SDCF

Detail

Height : 691 mm
Weight : 84.5 kgs (w/o oil)

■ Specifications :

Max. pressure : 700 bar
Oil required : 20 L
Motor size : 2 HP
Valve type : 4 way, 3 position solenoid valve
Input : 220V / 230V

■ Oil delivery :

10.5 L / min at low pressure
1.0 L / min at high pressure

■ Features :

With 5 meter remote control cable provides the user complete control to advance and retract.
Easy to use by one button control to advance and retract pumping.
Two stage pumping of high performance.
Equipped with single-phase, thermal protected motor to reduce noise level.
Equipped with large-capacity one piece metal oil tank.

■ Accessories :

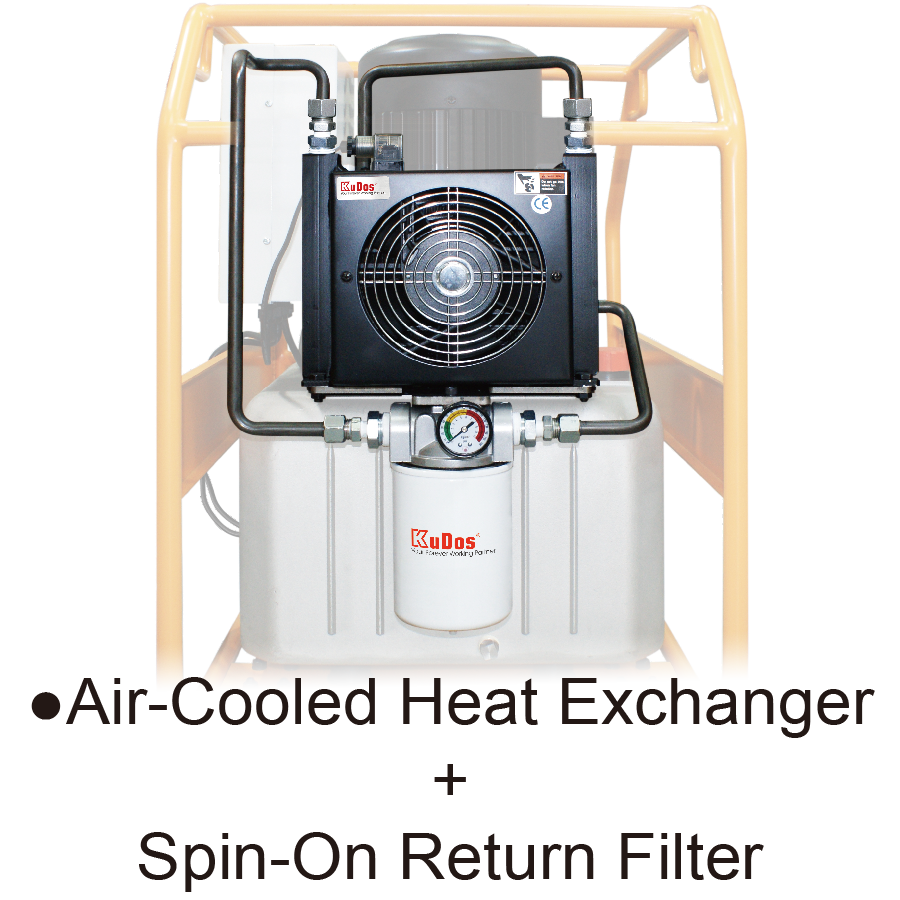

Cooler device : single-phase 220V / Flow @30L / min
