FM-30

Detail

Dimension : 325.4 mm(L) × 282.4 mm(W) × 343.1 mm(H)
Weight : 51.7 kgs

■ Specifications :
Max. Pressure : 700 bar
Acceptive Materials : SS 400 & SUS 304
Max. Processing Dimension : 75 mm × 75 mm × 6 mm

■ Features :
? Work with angle steel or stainless steel up to 75 x 75 x 6 mm

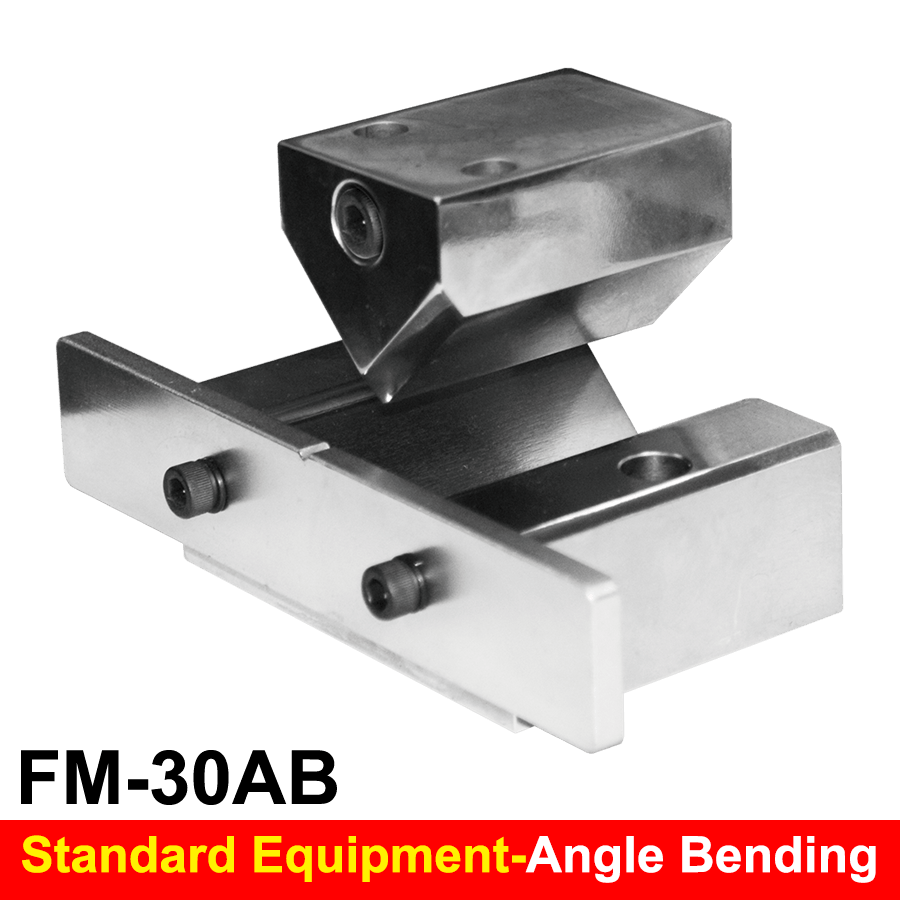

? V notching and bending dies are integrated into the machine. Only punching dies need to be changed
? Special changeover shaft permits steel forming to be done from V notching to bending within seconds
? By adjusting clamp base, V notch can be positioned for 3 mm to 6 mm, 90 degree or 45 degree corner cut
? Can be used with any hydraulic pumps having pressure rating of 700 bars

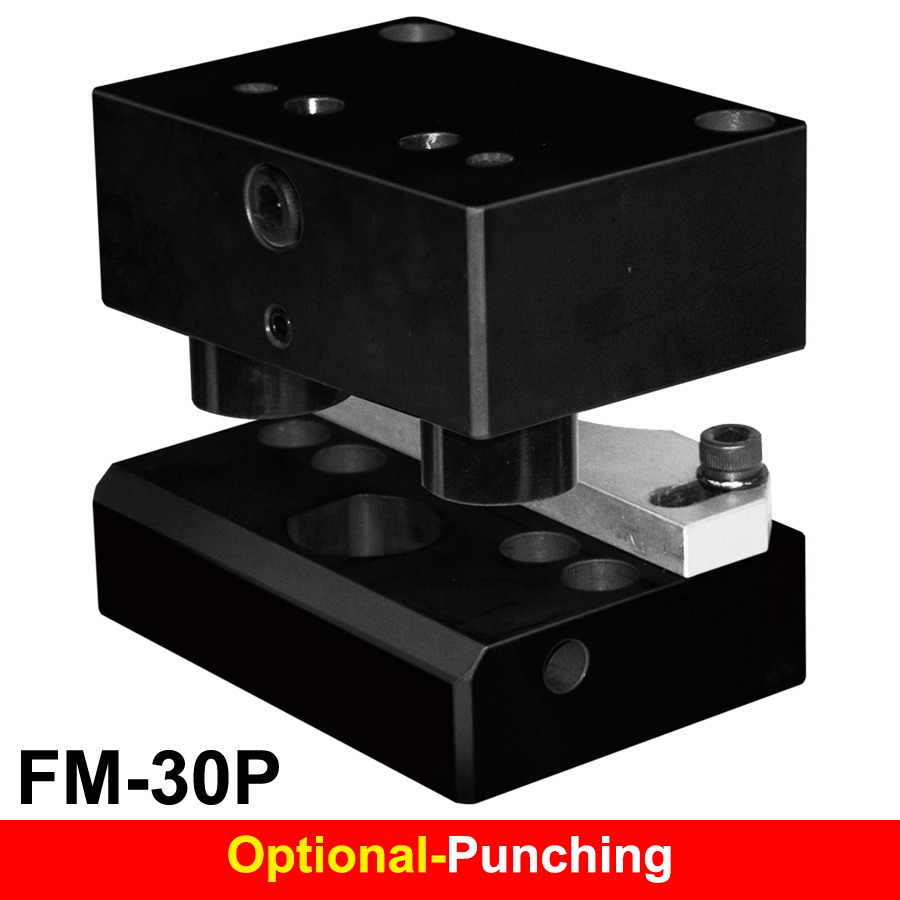

※ Punching dies are sold separately.
