HH-400I

Detail

Length : 559 mm
Weight : 5.8 kgs (Dies not included)

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 57 cc
Max. Output : 15.82 tons / 140.7 kN

■ Features :
Light weight, compact and slim design.
Single stage pumping for rapid ram advance.
Relief valve.
Head rotates through 180° for difficult working environment.

■ Accessories :

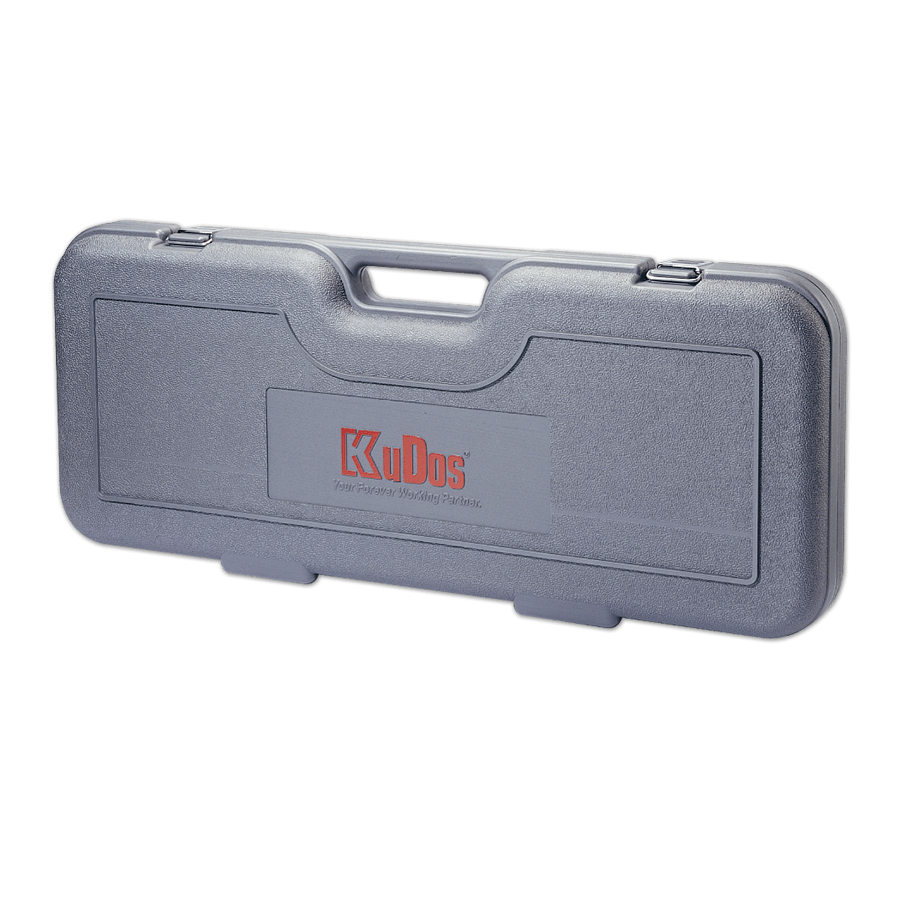

Plastic carrying case

※Crimping tope only without any die set.

※Dies sold separately

■ Model No. HH-400I
For solderless terminal 8~325 mm²
With support die 8~22, 38, 60~80, 100, 150~180, 200 and 325 mm²
With indent die 8~38, 60~100 and 150~325 mm dies
