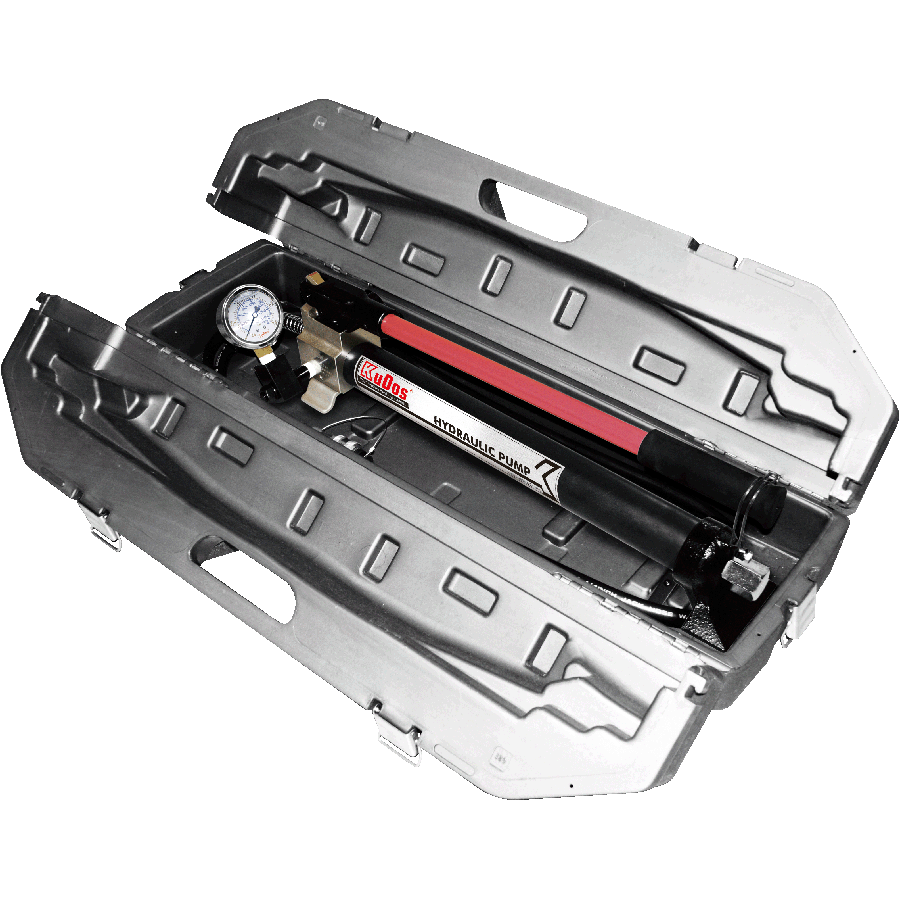

HP-700AG

Detail

Length : 595 mm
Weight : 10.4 kgs

■ Specifications :
Max. pressure : 700 bar
Oil required : 720 cc

■ Oil delivery :
12.26 cc / stroke at low pressure
2.26 cc / stroke at high pressure

■ Features :
Dual speed pump piston for rapid advance.
Two stage pumping action.
External adjustable pressure setting up to 700 bar.
Internal oil bladder type oil reservoir allows operation in any position.
Replaceable dropout bypass valve cartridge for easy repair.
Economical yet dependable hydraulic foot pump.

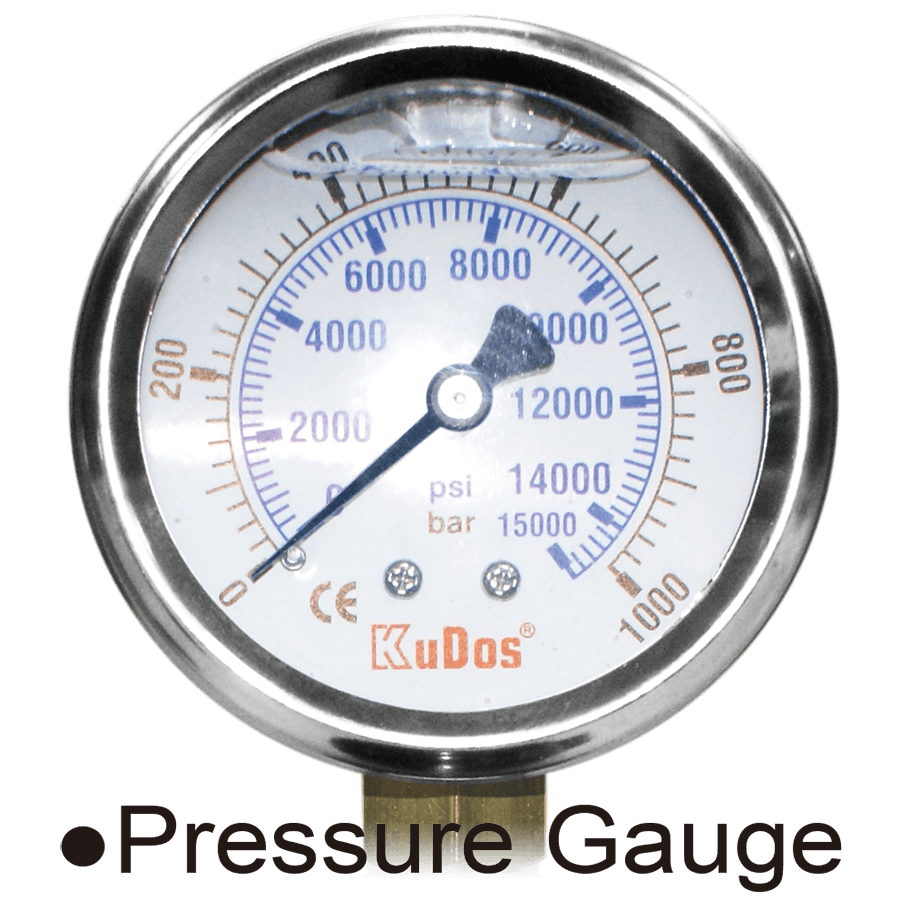

Attached with pressure gauge for pressure display.

■ Accessories :
2M hydraulic hose attached
