HYCP-15THE

Detail

Length : 375 mm
Weight : 6.8 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 104 cc
Max. Output : 15.57 tons / 138.5 kN
Jaw Opening : 50.6 mm
(45mm with die adapter ADP-15THE)

■ Crimping Capacity :
Compatible with BURNDY P dies
Compatible with all dies used for Alcoa, Burndy, T&B, Klauke, Combre and Blackburn 12-ton compressors when used with Adapter(ADP-15THE)

※Dies sold separately(CU16/25/35/50/70/95/120/150/185/240/300/400)

■ Features :
C-frame has open jaw for easy access to the fitting.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Single action cylinder with spring return.
Dies are easy to change.

■ Accessories :
Plastic carrying case

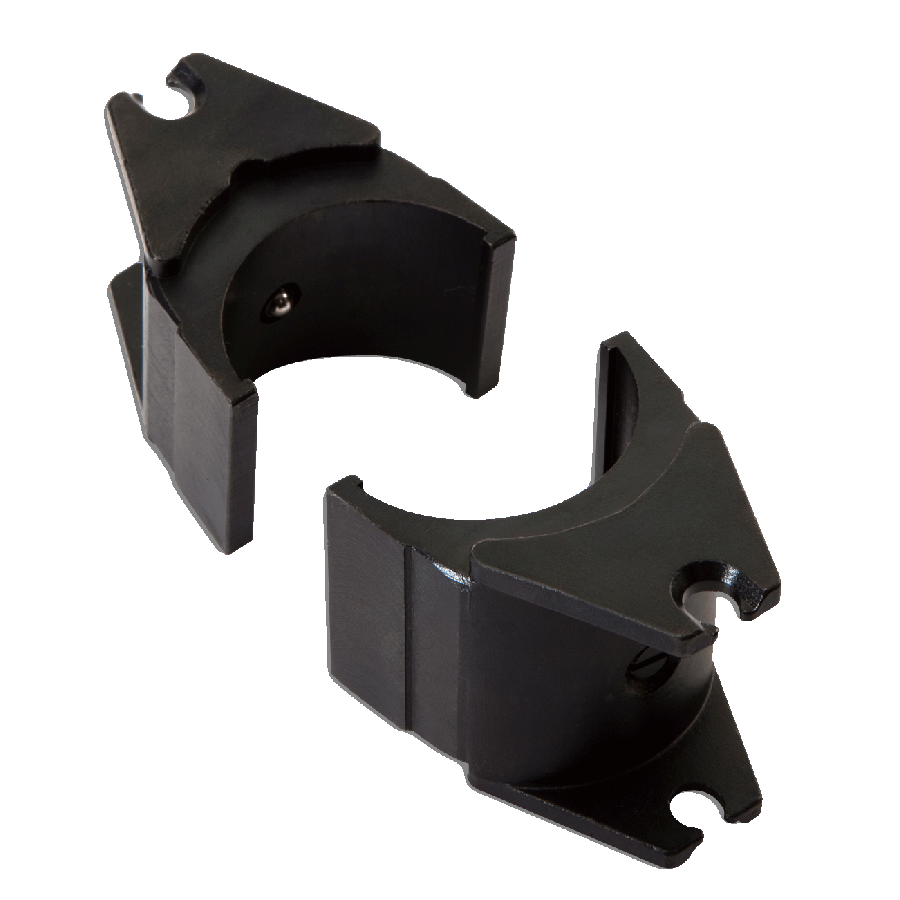

■ Model No. ADP-15THE

This adapter is designed for hydraulic
compression head HYCP-15THE to interchange
with die sets from other 12-ton tools (up to 400 mm²)
