HYCP-500HE

Detail

Length : 380 mm
Weight : 16.9 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 133 cc
Max. Output : 34.20 tons / 304.3 kN
Ram Stroke : 30 mm

■ Crimping Capacity :
Max. crimping capacity : 500 mm²
Copper lugs up to 500 mm²

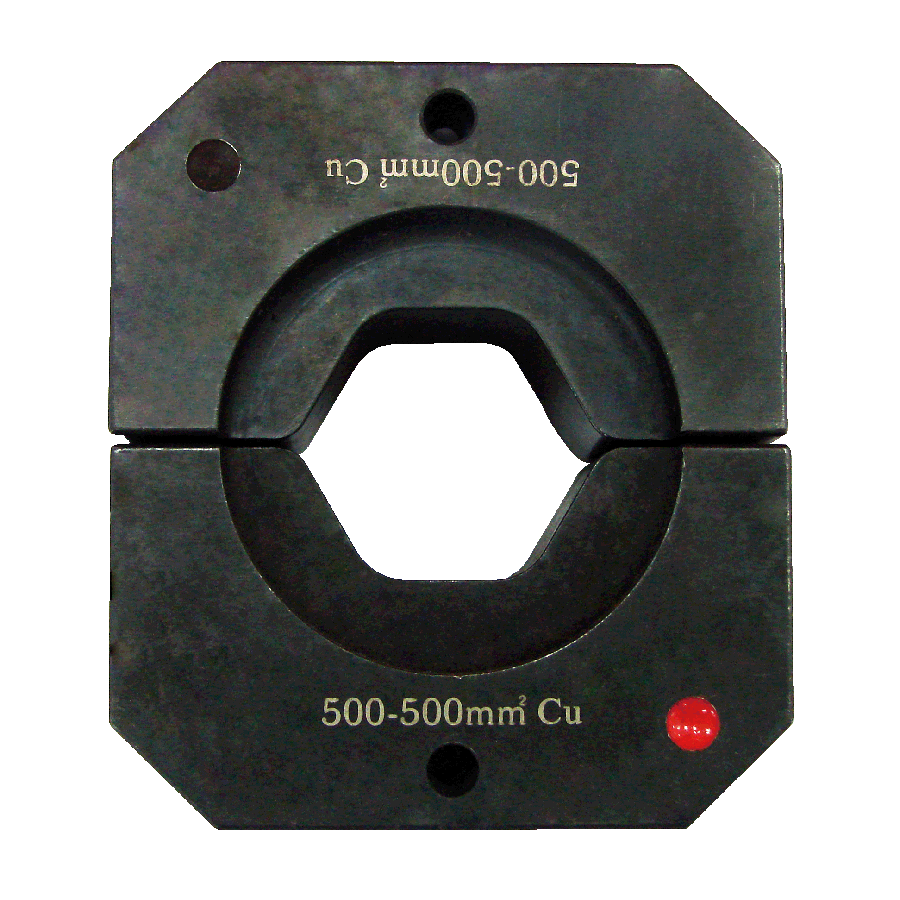

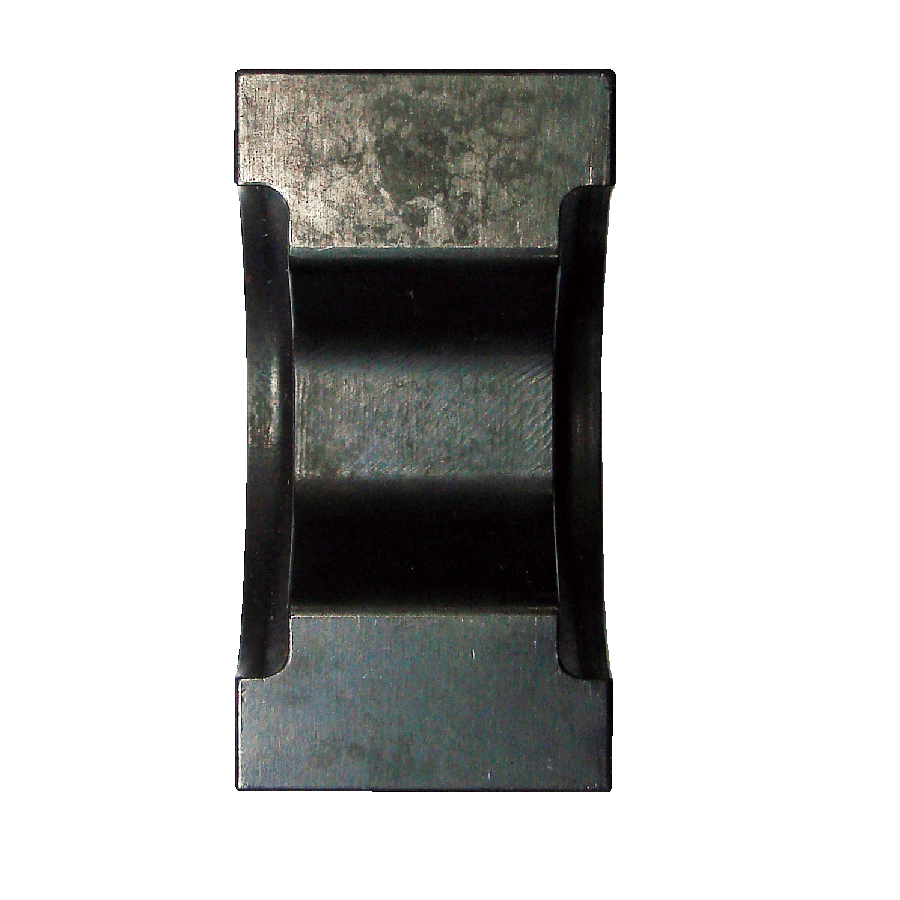

※Dies sold separately

■ Features :
Yoke-type head design is solid and durable
Convenient handle makes handling and hoisting easier.
Positive die locking mechanism holds dies firmly in place.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Single action cylinder with spring return.

■ Accessories :

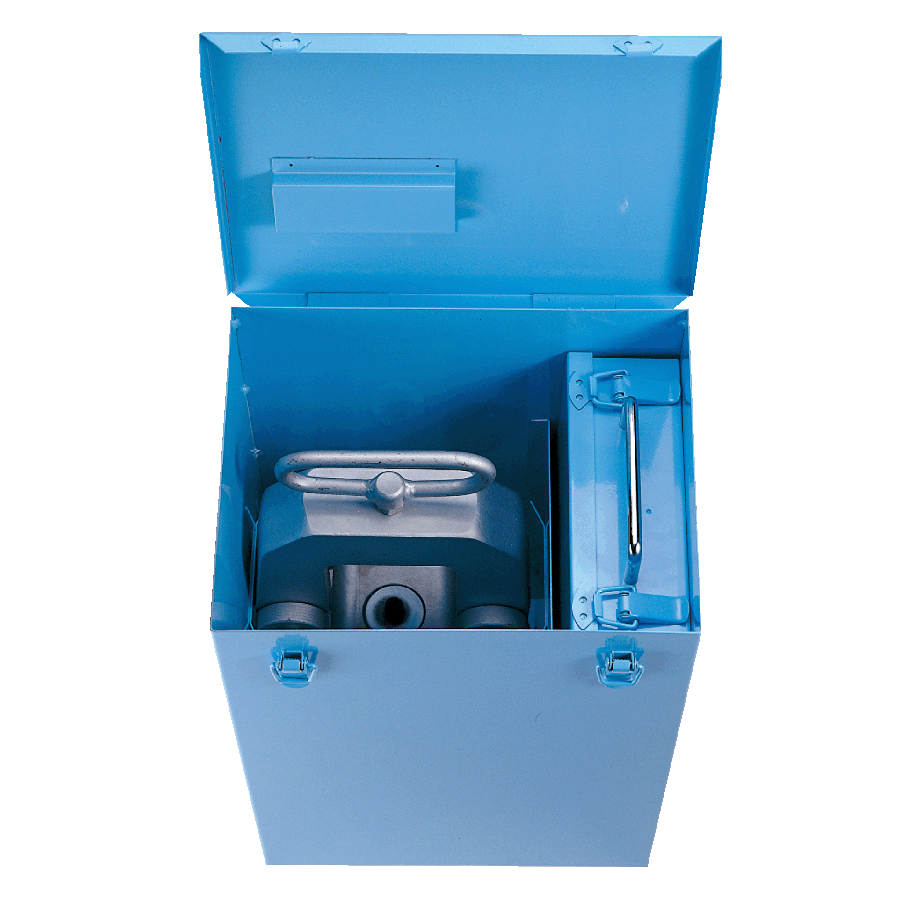

Metal case
