HYCP-630HE

Detail

Length : 320 mm
Weight : 5.7 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 89 cc
Max. Output : 24.91 tons / 221.6 kN

■ Crimping Capacity :
Max. crimping capacity : 600 mm²
Compatible with all dies used for Alcoa, Burndy, T&B, Klauke, Combre and Blackburn

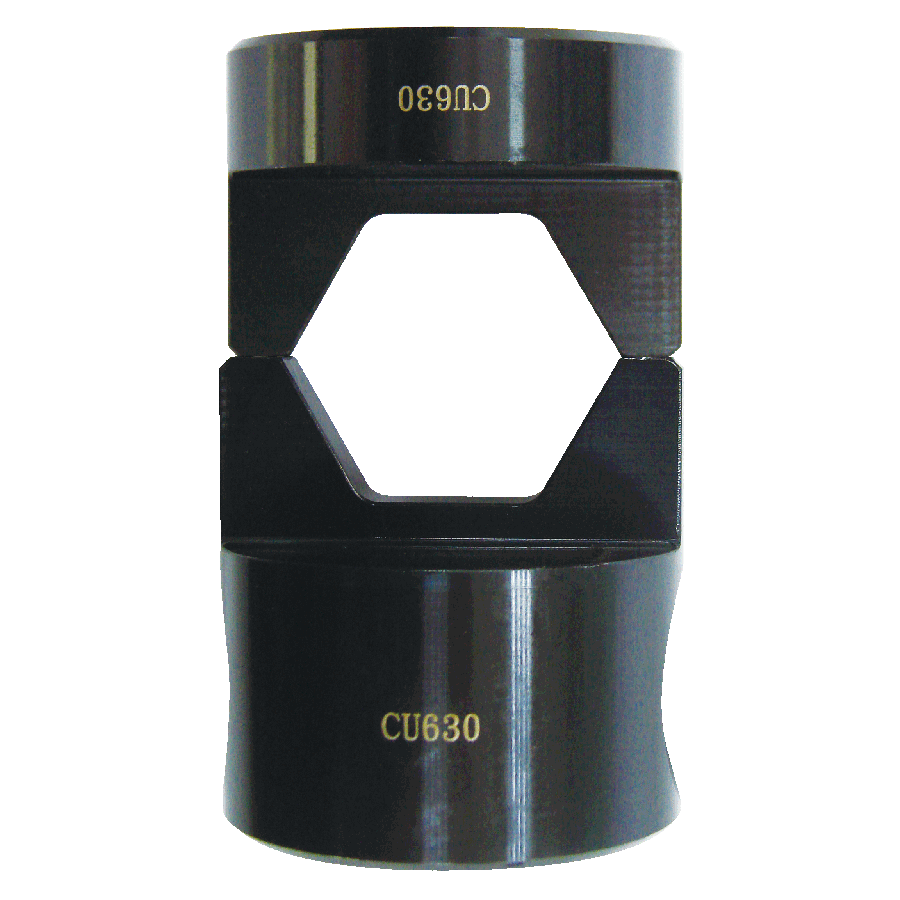

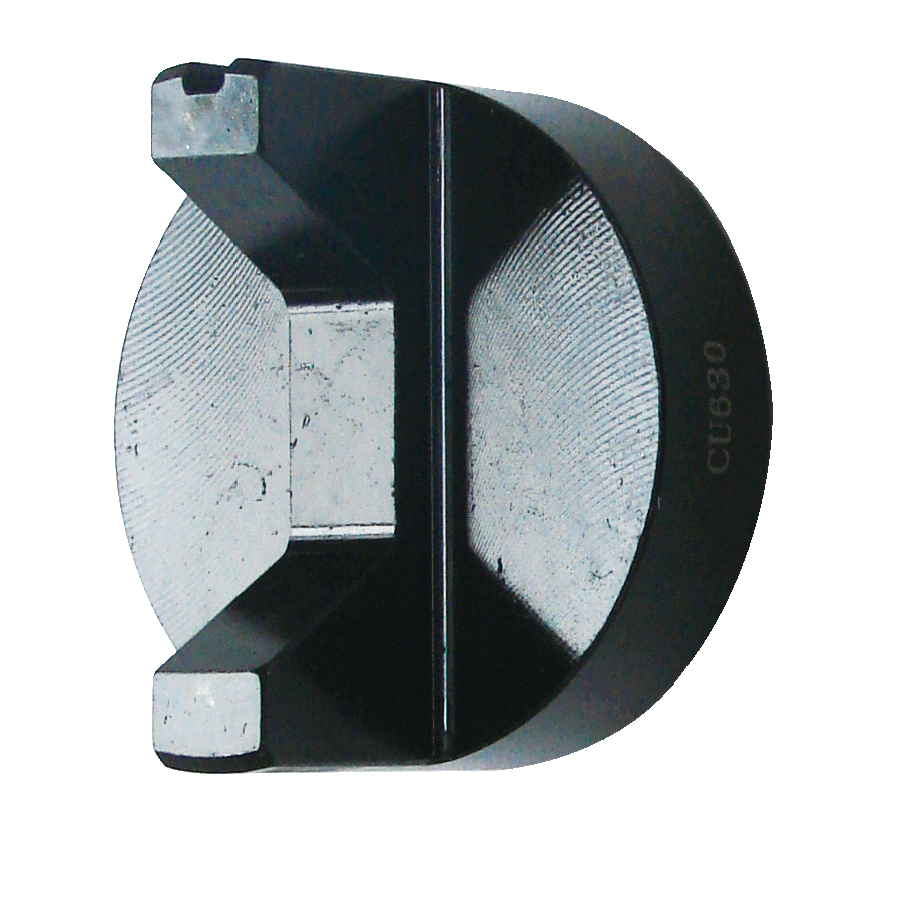

CU 400/500/630 dies included
Available for 12 ton die when used with Adapter(ADP-630THE)
12 ton dies sold separately.

■ Features :
Simple U-type head design is solid and durable.
Lock pin design holds die firmly in place.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Single action cylinder with spring return.

■ Accessories :

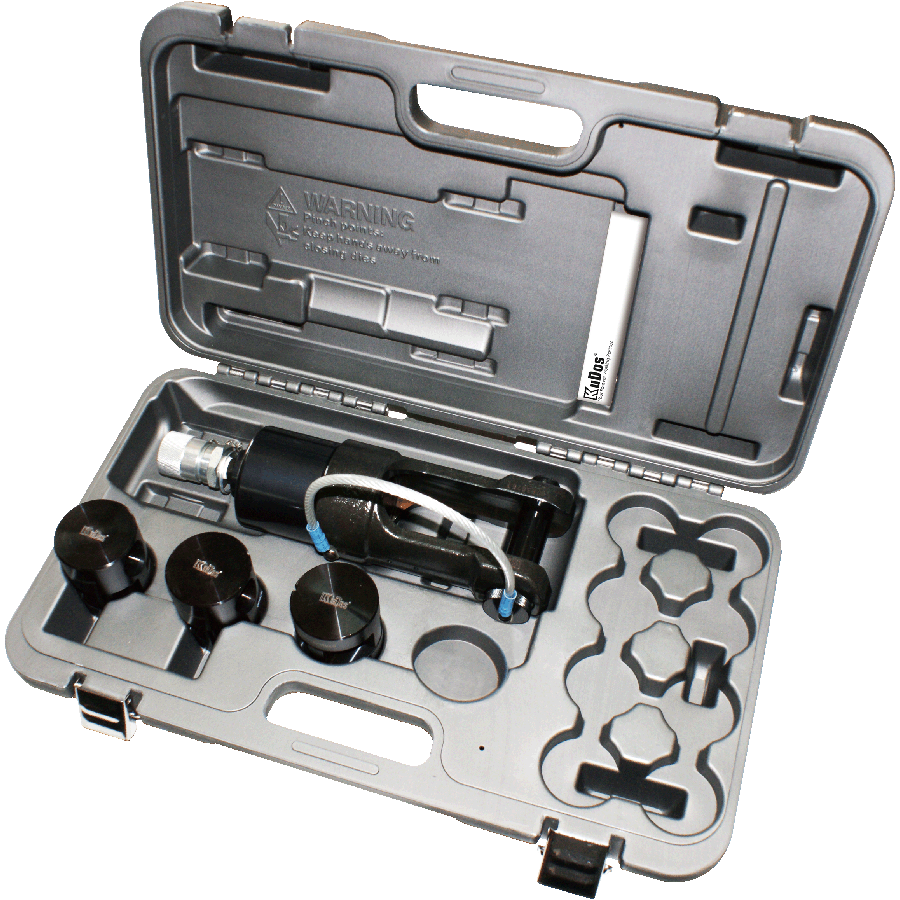

Plastic carrying case

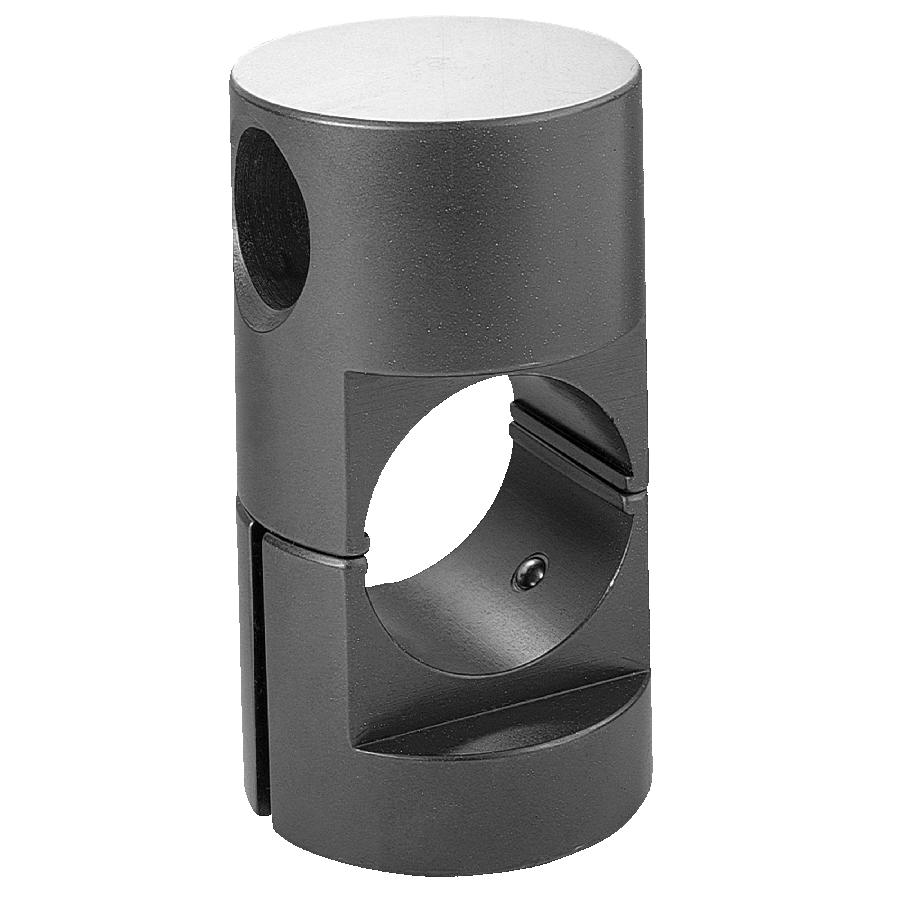

■ Model No . ADP-630HE

This adapter is designed for hydraulic
compression head HYCP-630HE to interchange
with die sets from other 12-ton tools(up to 400 mm²)
