HYNC-4150D
HYNC-4150D
Detail
HYNC-series (Double blade)
■ Features :
Compact design.
Easy to use.
Seven models of nut splitter to choose from.
Unique angled head design for a variety of applications.
Single action cylinder with hydraulic advance with spring-return.
Operated by hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
■ Specifications :
Double blade
| Model No | Bolt Range | Hex Nut Range (mm) | Capacity (ton) | Oil Capacity (cm³) | Dimensions (mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|
| HYNC-1319D | M6-M12 | 10-19 | 6.23 | 15 | 223 x 44 x 67 | 1.3 | 2.8 |
| HYNC-1924D | M12-M16 | 19-24 | 11.77 | 20 | 250 x 56 x 74 | 2.4 | 3.8 |
| HYNC-2432D | M16-M22 | 24-32 | 19.07 | 60 | 275 x 64 x 78 | 3.5 | 5.4 |
| HYNC-3241D | M22-M27 | 32-41 | 26.49 | 80 | 305 x 77 x 90 | 5.1 | 7.2 |
| HYNC-4150D | M27-M33 | 41-50 | 38.92 | 155 | 344 x 97 x 111 | 9.7 | 13.8 |
| HYNC-5060D | M33-M39 | 50-60 | 56.04 | 240 | 386 x 115 x 131 | 14.7 | 18.6 |
| HYNC-6075D | M39-M48 | 60-75 | 102.76 | 492 | 476 x 170 x 186 | 40.7 | 42.9 |

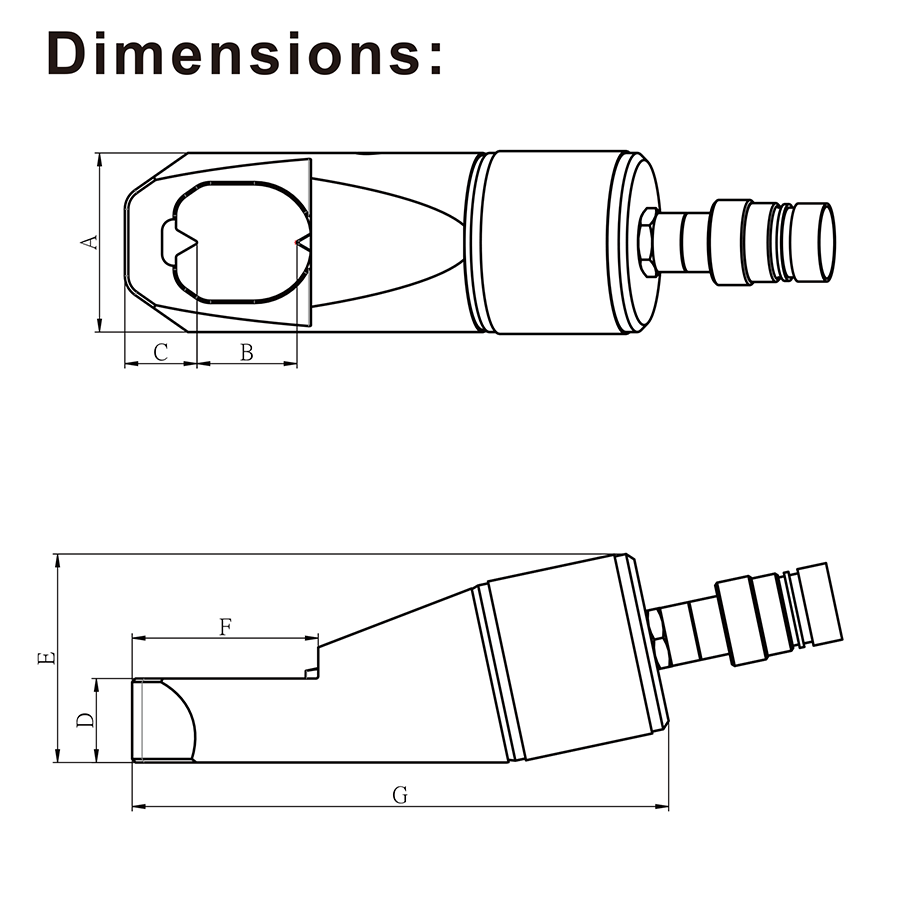

| Model No | A | B | C | D | E | F | G | H | I | Spare Chisels No. |
|---|---|---|---|---|---|---|---|---|---|---|
| HYNC-1319D | 40 | 21 | 18 | 19 | 53 | 41 | 139 | HYNC-1319D#7、#10 | Chisels | |
| HYNC-1924D | 54 | 26 | 22 | 25 | 66 | 50 | 168 | HYNC-1924D#7、#10 | Chisels | |
| HYNC-2432D | 64 | 34 | 26 | 30 | 78 | 65 | 198 | HYNC-2432D#7、#10 | Chisels | |
| HYNC-3241D | 77 | 43 | 31 | 36 | 90 | 80 | 231 | HYNC-3241D#7、#10 | Chisels | |
| HYNC-4150D | 94 | 52 | 39 | 45 | 111 | 93 | 271 | HYNC-4150D#7、#10 | Chisels | |
| HYNC-5060D | 106 | 62 | 43 | 54 | 131 | 107 | 315 | HYNC-5060D#7、#10 | Chisels | |
| HYNC-6075D | 156 | 77 | 54 | 75 | 186 | 133 | 411 | HYNC-6075D#7、#10 | Chisels | |
※Caution :
Only suitable for ≤ grade 8 nuts, splitting of stainless, square, and / or star nuts are prohibited.
Nut hardness must not exceed HRc-44.

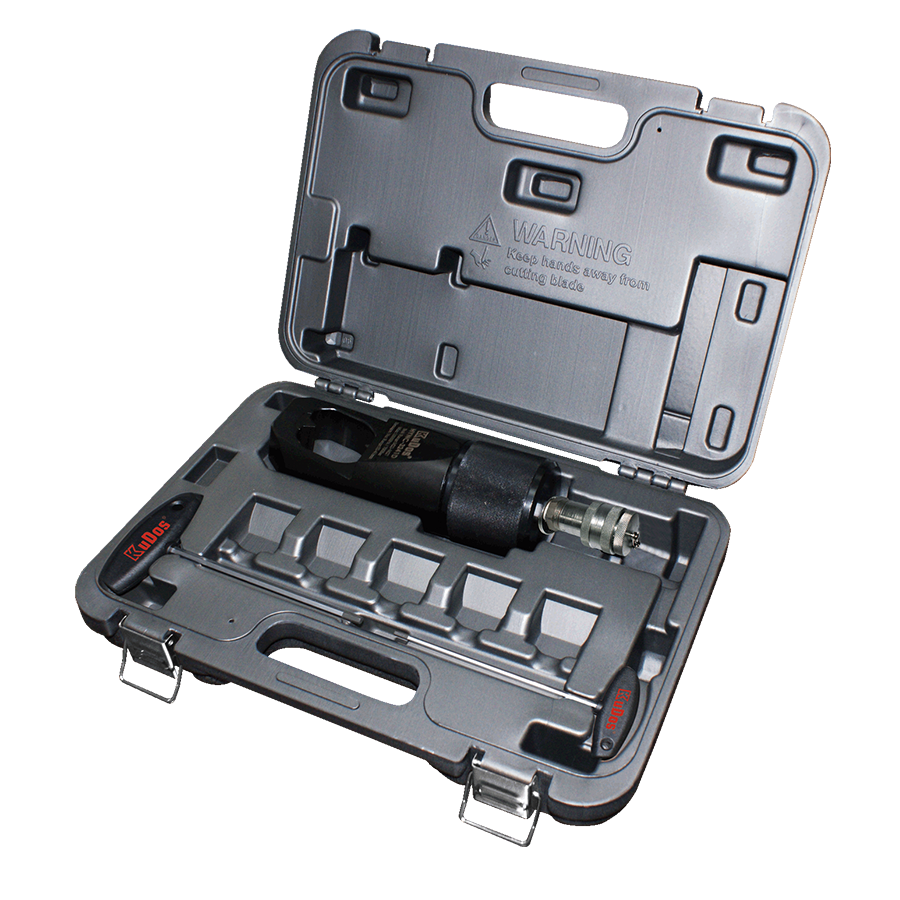

■ Accessories :
| Model No | A | B | C | D | E | F | G | Spare Chisels No. |
|---|---|---|---|---|---|---|---|---|
| HYNC-1319 | 40 | 21 | 7 | 19 | 50 | 29 | 120 | HYNC-1319#4 |
| HYNC-1924 | 54 | 25 | 10 | 25 | 62 | 40 | 146 | HYNC-1924#4 |
| HYNC-2432 | 64 | 33 | 13 | 30 | 76 | 52 | 180 | HYNC-2432#4 |
| HYNC-3241 | 70 | 42 | 16 | 36 | 87 | 65 | 205 | HYNC-3241#4 |
| HYNC-4150 | 90 | 52 | 21 | 45 | 108 | 76 | 245 | HYNC-4150#4 |
| HYNC-5060 | 106 | 60 | 24 | 54 | 125 | 92 | 288 | HYNC-5060#4 |
| HYNC-6075 | 156 | 80 | 27 | 75 | 184 | 110 | 365 | HYNC-6075#4 |
