HYNC-6075D

Detail

HYNC-series (Double blade)

■ Features :
Compact design.
Easy to use.
Seven models of nut splitter to choose from.
Unique angled head design for a variety of applications.
Single action cylinder with hydraulic advance with spring-return.
Operated by hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

■ Specifications :
Double blade

Model No	Bolt Range	Hex Nut Range (mm)	Capacity (ton)	Oil Capacity (cm³)	Dimensions (mm)	Net Weight (kg)	Gross Weight (kg)
HYNC-1319D	M6-M12	10-19	6.23	15	223 x 44 x 67	1.3	2.8
HYNC-1924D	M12-M16	19-24	11.77	20	250 x 56 x 74	2.4	3.8
HYNC-2432D	M16-M22	24-32	19.07	60	275 x 64 x 78	3.5	5.4
HYNC-3241D	M22-M27	32-41	26.49	80	305 x 77 x 90	5.1	7.2
HYNC-4150D	M27-M33	41-50	38.92	155	344 x 97 x 111	9.7	13.8
HYNC-5060D	M33-M39	50-60	56.04	240	386 x 115 x 131	14.7	18.6
HYNC-6075D	M39-M48	60-75	102.76	492	476 x 170 x 186	40.7	42.9

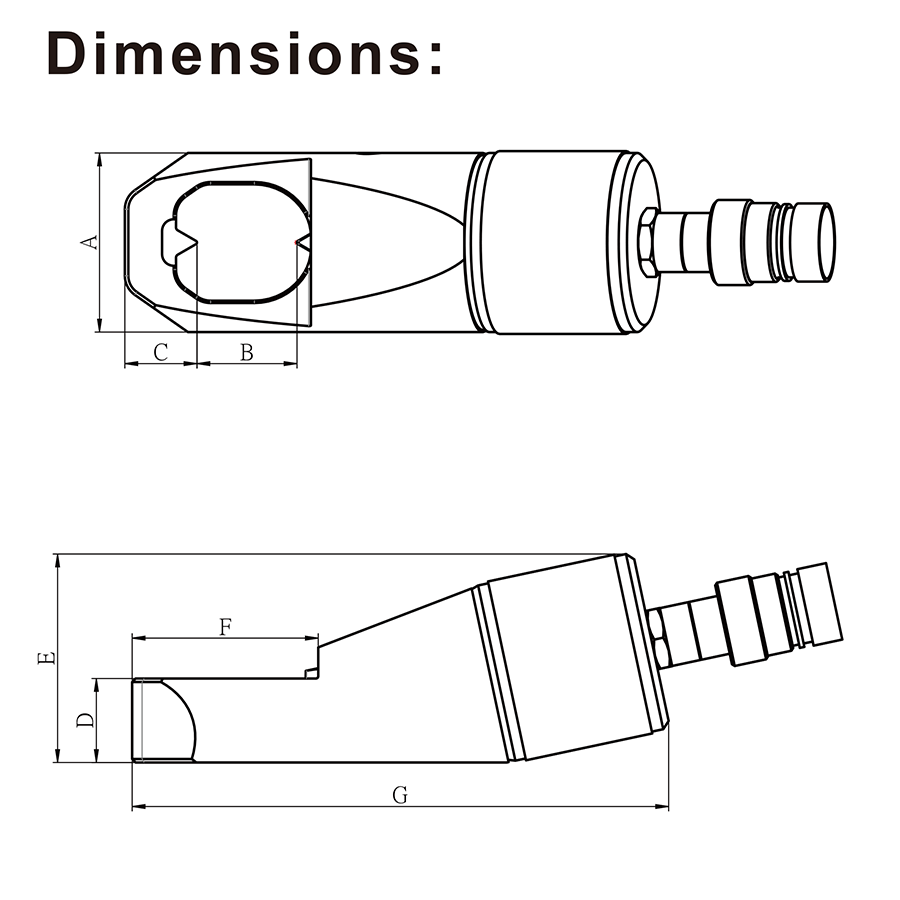

Model No	A	B	C	D	E	F	G	H	Spare Chisels No.
HYNC-1319D	40	21	18	19	53	41	139	HYNC-1319D#7、#10	Chisels
HYNC-1924D	54	26	22	25	66	50	168	HYNC-1924D#7、#10	Chisels
HYNC-2432D	64	34	26	30	78	65	198	HYNC-2432D#7、#10	Chisels
HYNC-3241D	77	43	31	36	90	80	231	HYNC-3241D#7、#10	Chisels
HYNC-4150D	94	52	39	45	111	93	271	HYNC-4150D#7、#10	Chisels
HYNC-5060D	106	62	43	54	131	107	315	HYNC-5060D#7、#10	Chisels
HYNC-6075D	156	77	54	75	186	133	411	HYNC-6075D#7、#10	Chisels

※Caution :
Only suitable for ≤ grade 8 nuts, splitting of stainless, square, and / or star nuts are prohibited.
Nut hardness must not exceed HRc-44.

■ Accessories :

Model No	A	B	C	D	E	F	G	Spare Chisels No.
HYNC-1319	40	21	7	19	50	29	120	HYNC-1319#4
HYNC-1924	54	25	10	25	62	40	146	HYNC-1924#4
HYNC-2432	64	33	13	30	76	52	180	HYNC-2432#4
HYNC-3241	70	42	16	36	87	65	205	HYNC-3241#4
HYNC-4150	90	52	21	45	108	76	245	HYNC-4150#4
HYNC-5060	106	60	24	54	125	92	288	HYNC-5060#4
HYNC-6075	156	80	27	75	184	110	365	HYNC-6075#4
