HYSC-20

Detail

Length : 344 mm
Weight : 2.5 kgs

■ Specifications :
Max pressure : 550 bar
Oil required : 22 cc
Max output : 5.85 tons / 52.0 kN

■ Cutting capacity :
Wire rope 6x7 : 16 mm
Wire rope 6x12 : 20 mm
Wire rope 6x19 : 20 mm
Soft copper bar : 20 mm
Soft aluminum bar : 16 mm
Underground cable : 18 mm
Soft steel bar : 16 mm
Reinforcing rod : 13 mm
Cu strands : 20 mm
Al strands : 20 mm
ACSR : 21 mm
Guy wire 1x7 : 15 mm
Guy wire 1X19 : 16 mm

※Cutting of piano wire is prohibited.

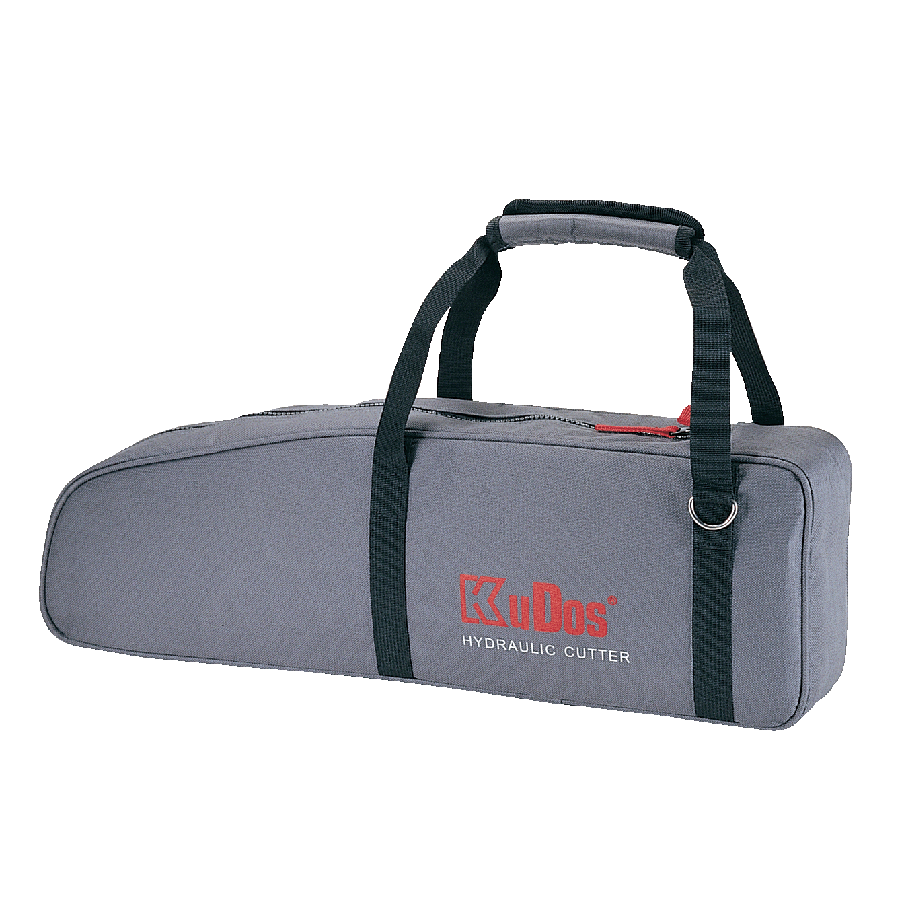

■ Features : 180? rotating head for convenient operation. Superior guillotine type cutting for less jamming than shear type cutters. Single stage pumping action. All blades are easily replaceable. Flip-top latch for easy insertion of cutting material. Single stage pump action with spring return. No set-up time required. Lightweight, self-contained tool, can be used anywhere. ■ Accessories : Carrying bag
