HYSC-20HE

Detail

Length : 240 mm
Weight : 2.1 kgs

■ Specifications :
Max pressure : 700 bar
Oil required : 19 cc
Max output : 5.84 tons / 52.0 kN

■ Cutting capacity :
Wire rope 6x7 : 16 mm
Wire rope 6x12 : 20 mm
Wire rope 6x19 : 20 mm
Soft copper bar : 20 mm
Soft aluminum bar : 16 mm
Underground cable : 18 mm
Soft steel bar : 16 mm
Reinforcing rod : 13 mm
Cu strands : 20 mm
Al strands : 20 mm
ACSR : 21 mm
Guy wire 1x7 : 15 mm
Guy wire 1X19 : 16 mm

※Cutting of piano wire is prohibited.

■ Features :
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Single action piston/cylinder arrangement
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
Single action cylinder with spring return.

■ Accessories :

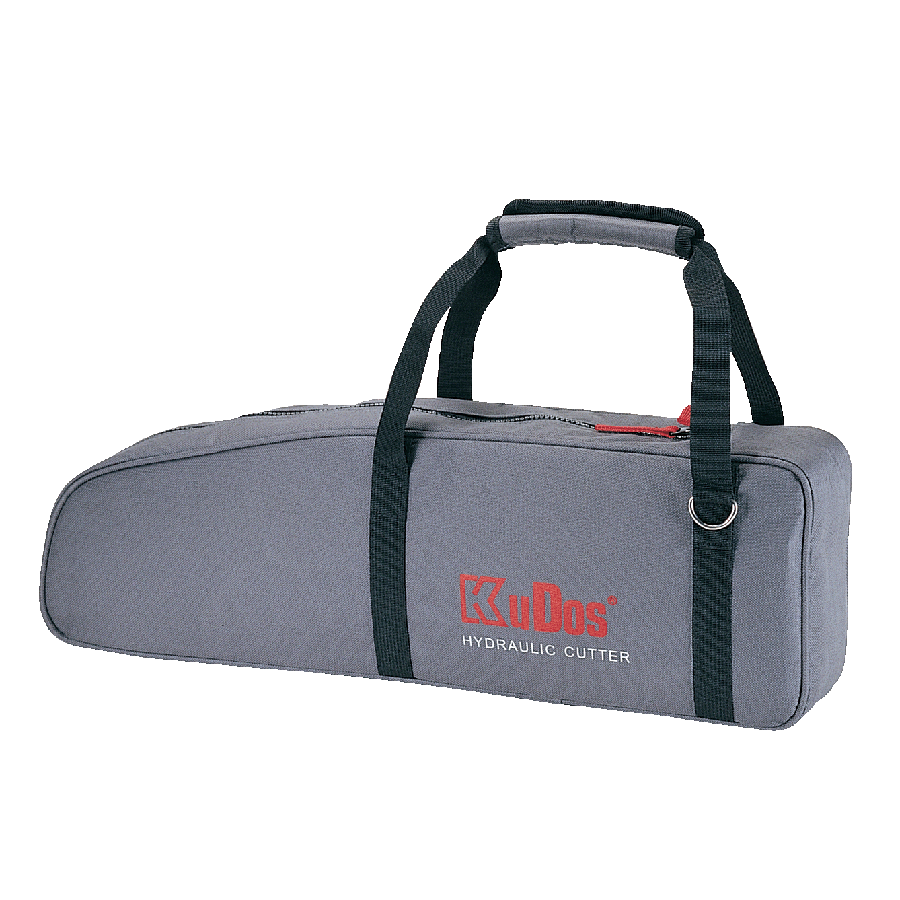

Carrying bag
