HYSC-32HE

Detail

Length : 300 mm
Weight : 9.0 kgs

■ Specifications :
Max pressure : 700 bar
Oil required : 135cc
Max output : 28.12 tons / 250.2 kN

■ Cutting capacity :
Wire rope 6x7 : 32 mm
Wire rope 6x12 : 32 mm
Wire rope 6x19 : 32 mm
Soft steel bar : 25 mm
Reinforcing rod : 25 mm
Cu strands : 32 mm
Al strands : 32 mm
ACSR : 32 mm
Guy wire 1x7 : 32 mm
Guy wire 1X19 : 32 mm
Soft copper bar : 32 mm
Soft aluminum bar : 32 mm
Underground cable : 32 mm

※Cutting of piano wire is prohibited.

■ Features :
Functional handle for convenient operation.
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Single action piston/cylinder arrangement
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
Single action cylinder with spring return.

■ Accessories :

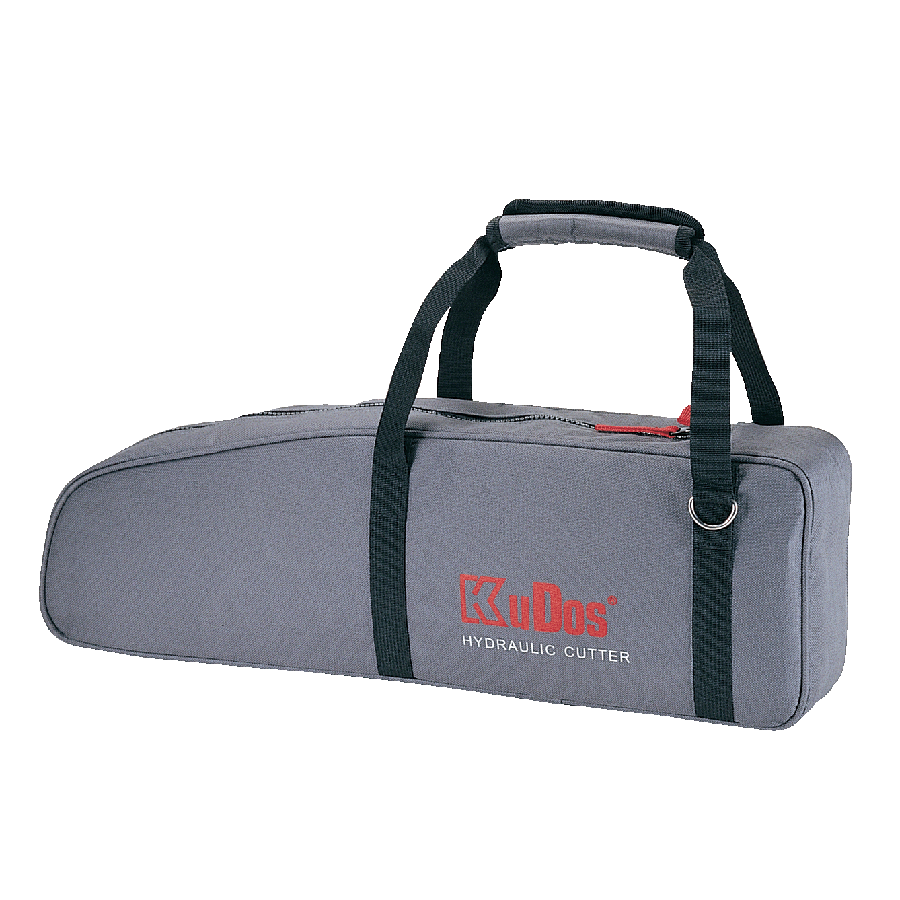

Carrying bag
