HYSC-55HE

Detail

Length : 415 mm
Weight : 8.4 kgs

■ Specifications:
Max pressure : 700 bar
Oil required : 107 cc
Max output : 16.44 tons / 146.3 kN

■ Cutting capacity:
Wire rope 6x7 : 25 mm
Wire rope 6x12 : 30 mm
Wire rope 6x19 : 30 mm
Soft steel bar : 22 mm
Reinforcing rod : 19 mm
Cu strands : 50 mm
Al strands : 50 mm
ACSR : 50 mm
Guy wire 1x7 : 15 mm
Guy wire 1x19 : 20 mm
Soft copper bar : 24 mm
Soft aluminum bar : 18 mm
Underground cable : 24 mm

※Cutting of piano wire is prohibited.

■ Features:
Functional handle for convenient operation.
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
Single action cylinder with spring return.

■ Accessories:

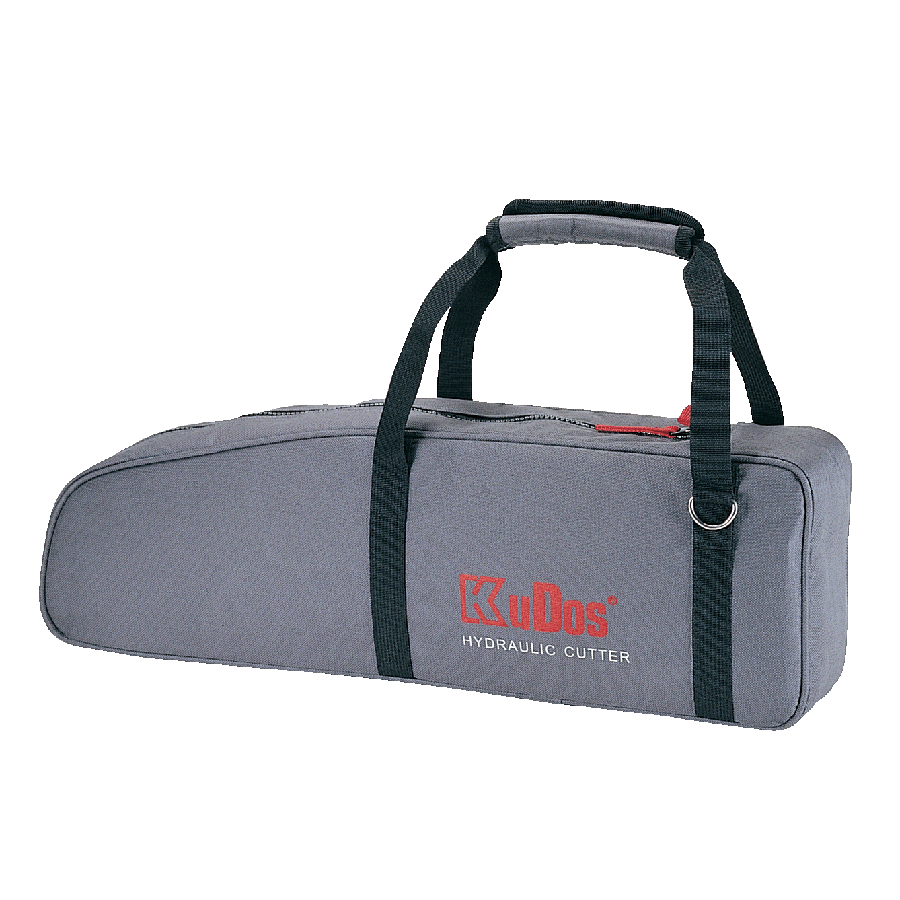

Carrying bag
