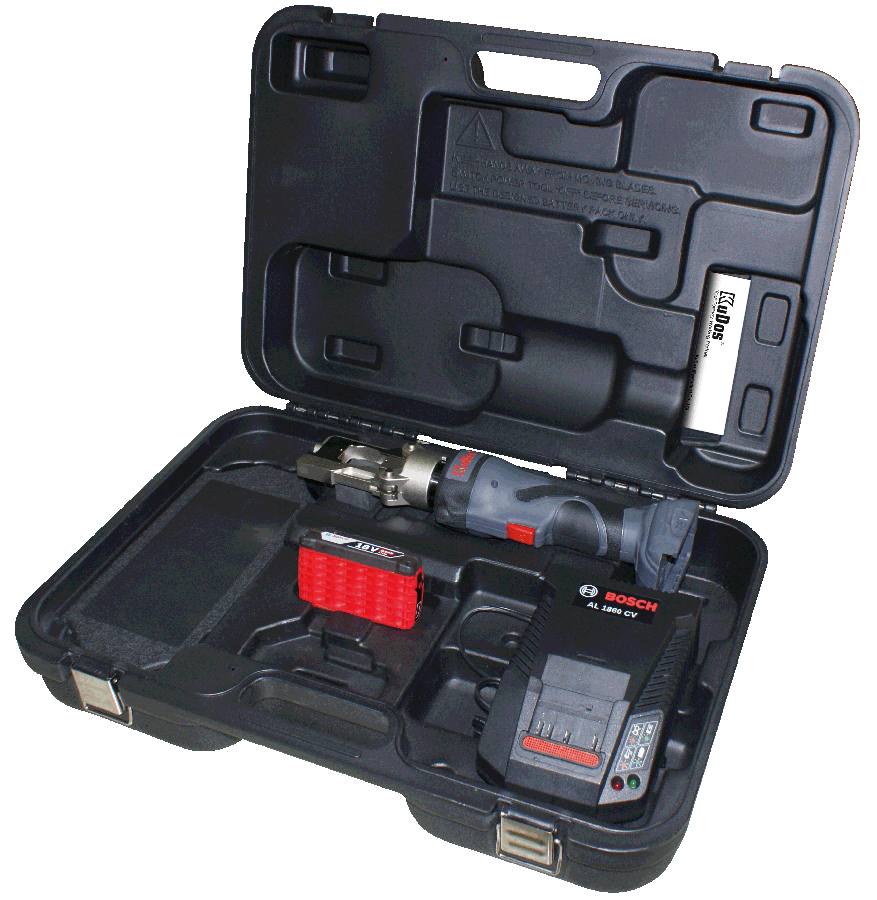

K-185

Detail

Length : 360 mm
Weight : 2.2 kgs(w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60 Hz
Reservoir capacity : 48 cc

■ Crimping Capacity :
Max pressure : 460 bar
Max output : 5.77 tons / 51.3 kN
Max compression : 185 mm² copper
Accepts BEKU type dies
Stock Dies are for DIN46235 terminals
Dies sold separately (AHE 1016/2535/5070/95120/150/185)
