K-P50
K-P50
Detail
Length : 427 mm
Weight : 3.3 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60 Hz
Reservoir capacity : 48 cc
■ Function :
Max pressure : 520 bar
Max output : 5.53 tons / 49.2 kN

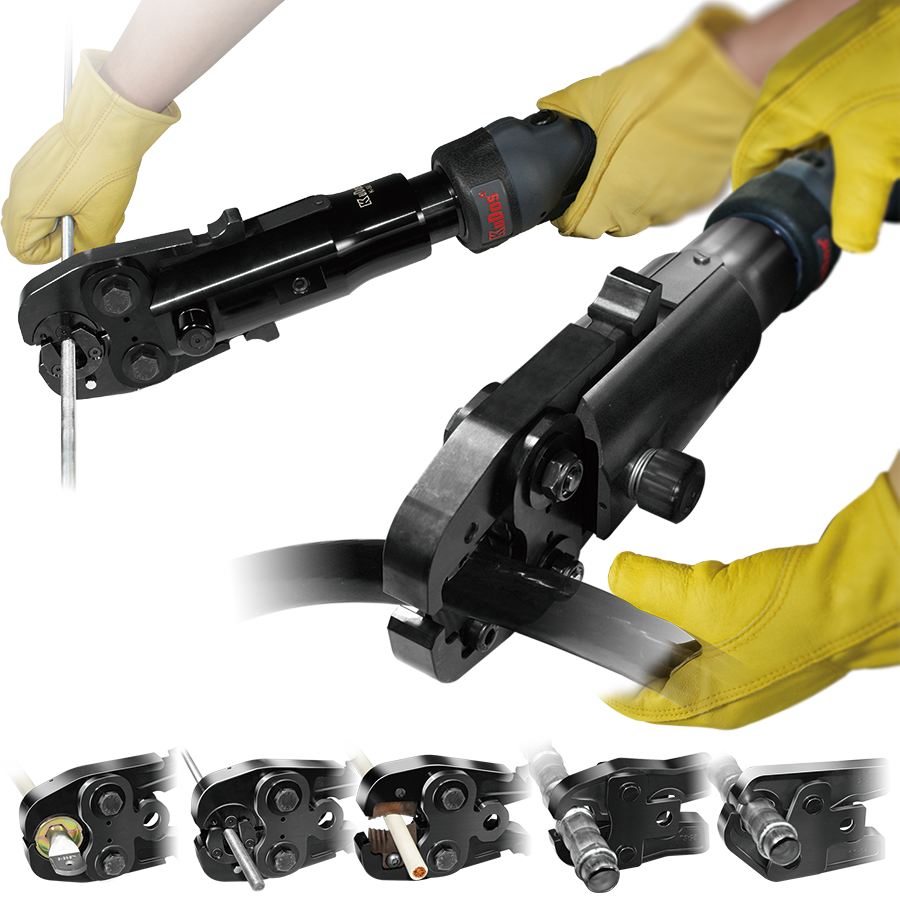

※ 9 adapter heads are sold separately :
| A13-SU | A20-SU | A25-SU |
| For 1/2” pipe Weight: 3.0 kgs |
For 3/4” pipe Weight: 3.0 kgs |
For 1” pipe Weight: 3.0 kgs |
| B13-SU | B20-SU | B25-SU |
| For 1/2” pipe Weight: 3.0 kgs |
For 3/4” pipe Weight: 3.0 kgs |
For 1” pipe Weight: 3.0 kgs |
| KP-50CP | KP-50CT | KP-50TR |
| Weight: 2.0 kgs Opening: 46.5 mm |
Weight: 2.0 kgs Cutting Opening: 32 mm Cutting Capacity: Max 325 mm² |
Weight: 0.2 kgs Thread Rod Cutting Adapter: 3/8”-16 UNC Suited Material: Iron |
※(Standard JIS G3448)
