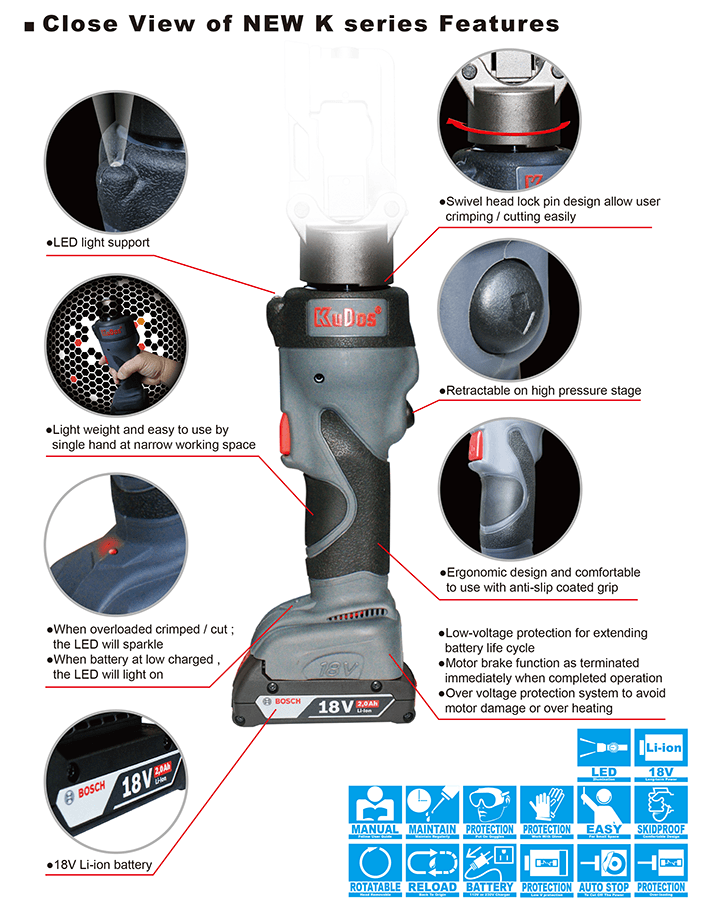

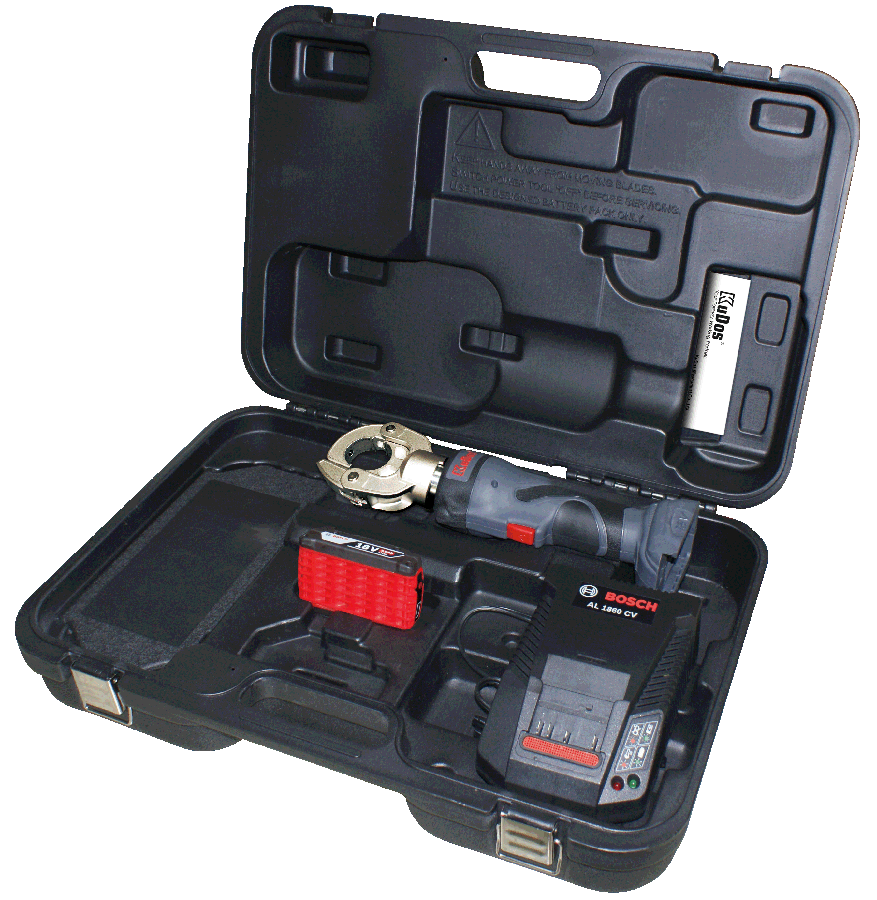

K-PH300

Detail

Length : 359 mm
Weight : 3.0 kgs(w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60 Hz
Reservoir capacity : 48 cc

■ Crimping Capacity :
Max pressure : 550 bar
Max output : 6.90 tons / 61.4 kN
Max compression : 300 mm² copper Aluminum lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembre and Blackburn 6 ton compressors

※Dies sold separately (T16/25/35/50/70/95/120/150/185/240/300)
