K-SW15TE

Detail

Height: 288 mm
Weight: 7.5 kgs

■ Specifications:

Max. Pressure : 700 bar
Oil Required : 79 cc
Max Output : 15.60 tons / 138.9 kN

■ Spreader Capacity:

Min. Spread : 32 mm
Max. Spread : 81 mm

■ Features:

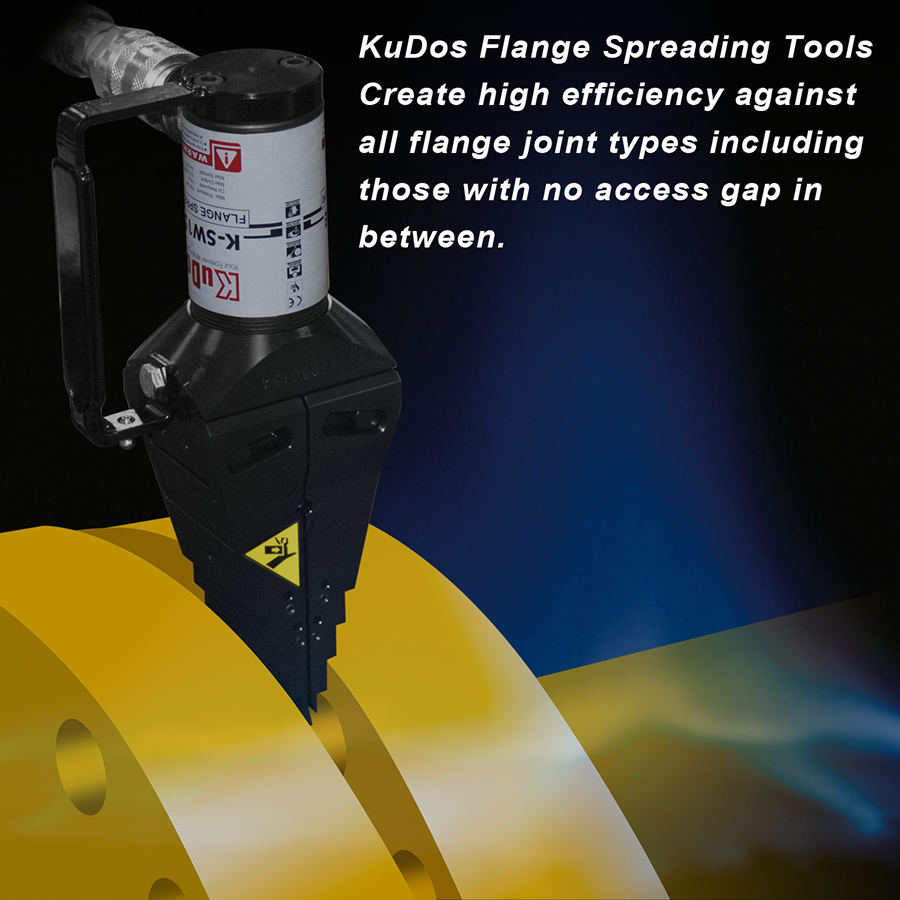

Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure.
Unique interlocking wedge design: no first step bending and risk of slipping out of joint.
Requires very small access gap of only 6 mm (.24 in).
Few moving parts means durability and low maintenance.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

■ Accessories:

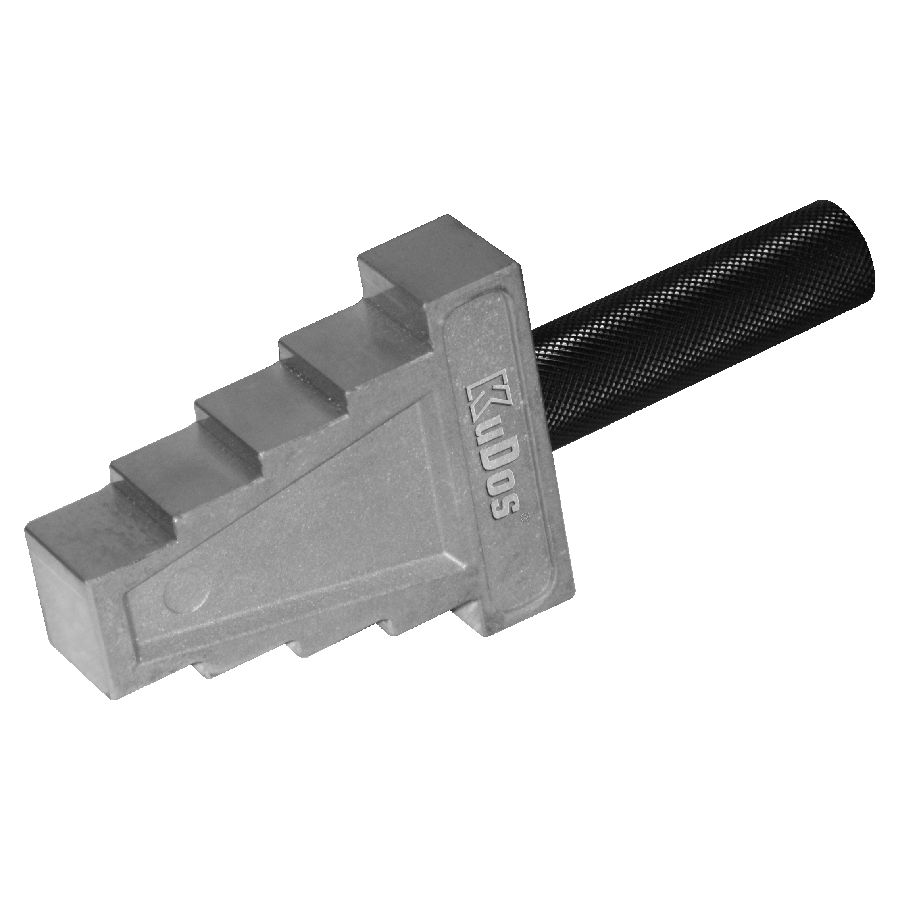

Safety Block

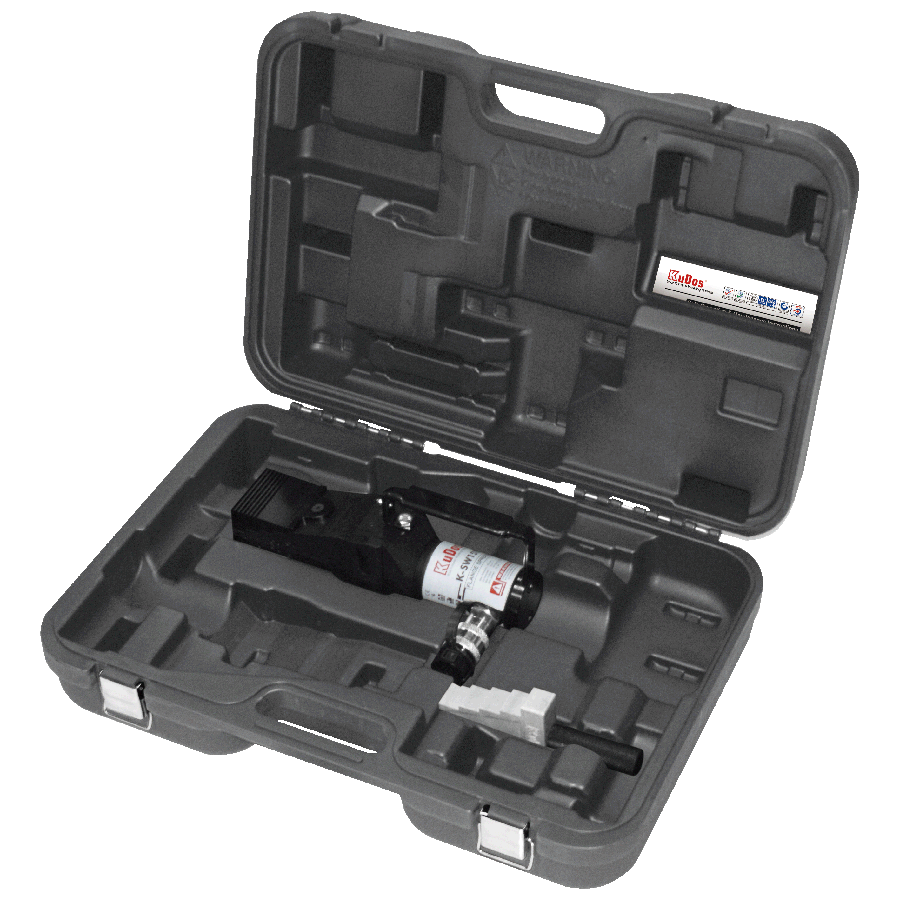

Plastic carrying case
(Case sold separately)
