KEP-5

Detail

Length : 430 mm
Weight : 3.6 kgs(w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Max pressure : 700 bar
Reservoir capacity : 48 cc

■ Punch driver : PDV-10
Ram Stroke : 25 mm
Oil Required : 47 cc
Max. Output : 14.01 tons / 125 kN

■ Punching capacity :
Max. Thickness
Stainless Steel : 1.6 mm
Mild Steel : 3.2 mm
4 inch diameter hole on 3.2 mm thickness mild steel
Single action cylinder with spring release

■ Accessories :
? Draw stud (3/4”, 3/8”)
? Spacer (S, M, L)

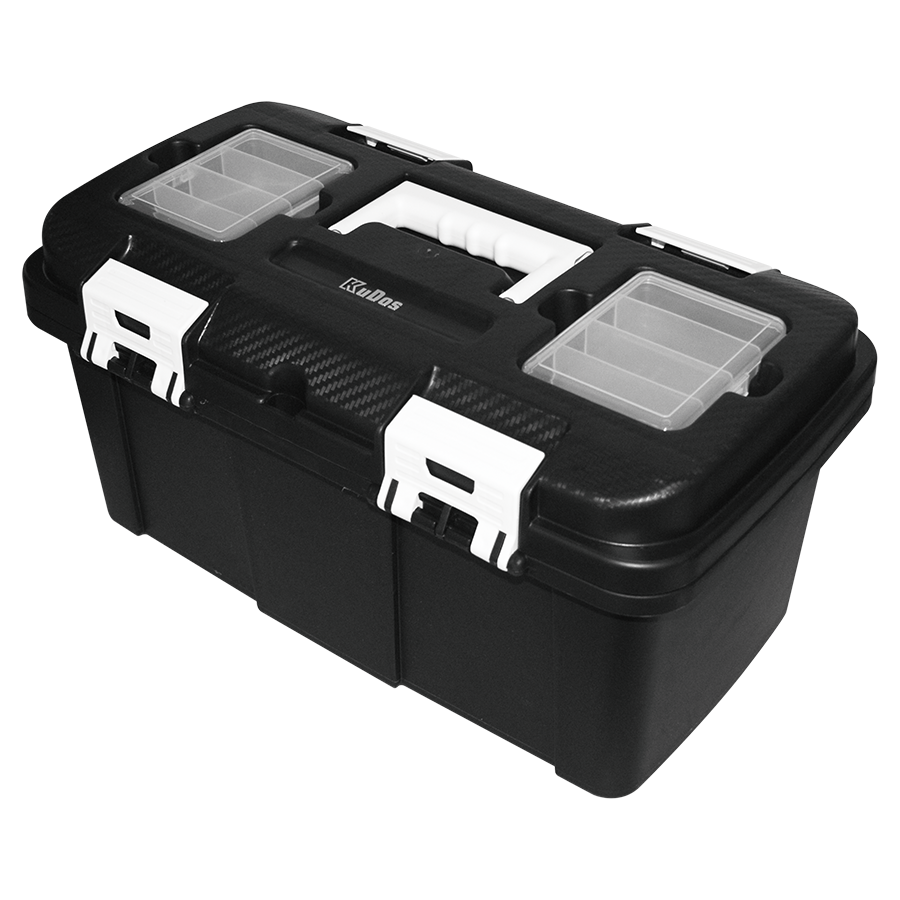

? Plastic case

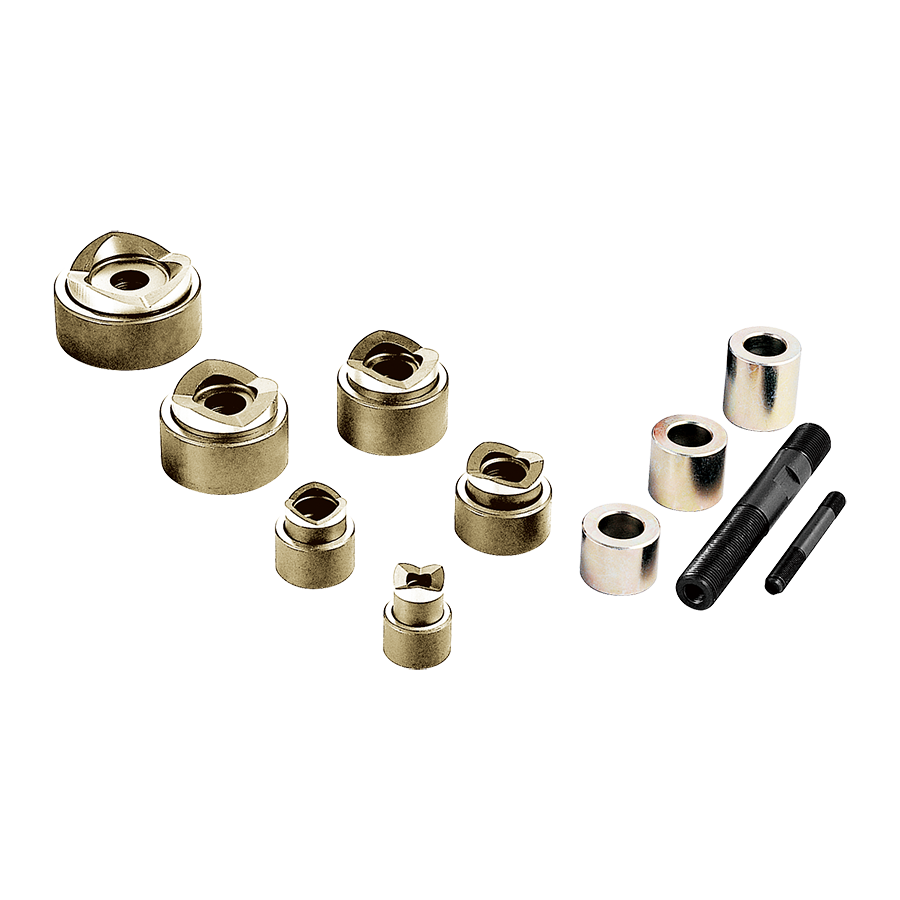

■ Optional Punching Dies :
? 6 Imperial Punch Die Sets
1/2”, 3/4”, 1”, 1-1/2”, 2”
? 6 Metric Punch Die Sets
16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm
