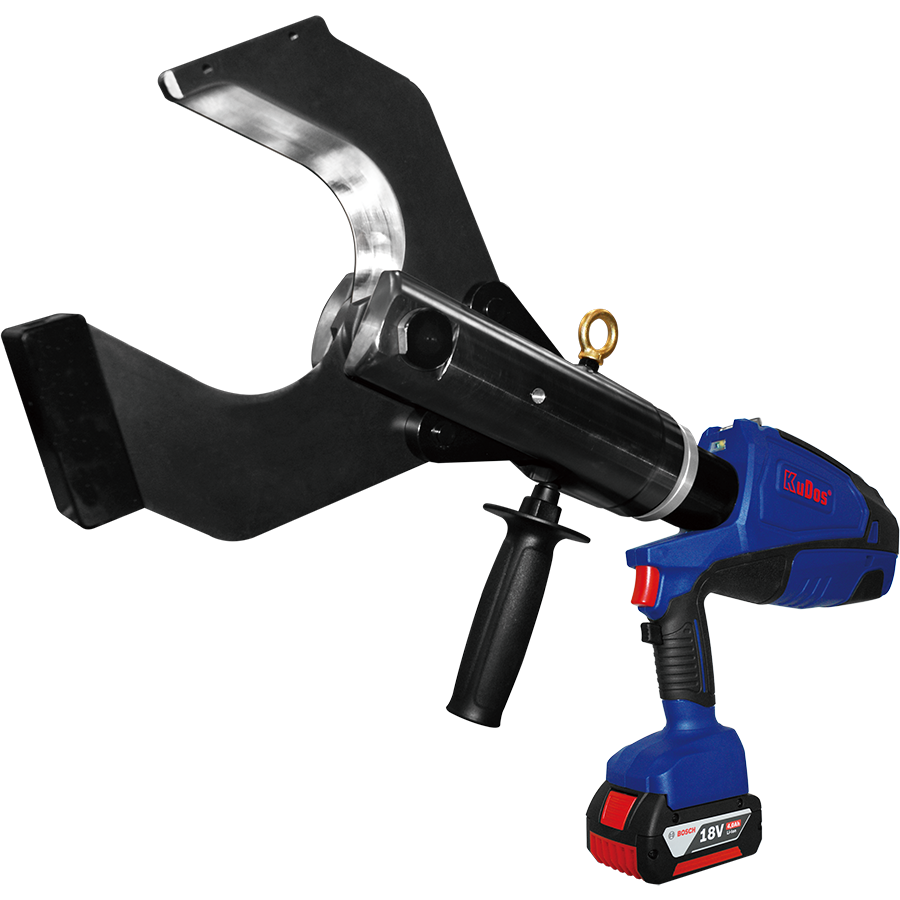

KV-110

Detail

Length : 679 mm
Weight : 11.2 kgs (w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc

■ Cutting capacity :
Max pressure : 700 bar
Max output : 14.01 tons / 124.6 kN
Cu strands : 80 mm
Al strands : 80 mm
CCP cable : 110 mm
Underground cable : 105 mm (Except armoured cable)

※ Cutting of piano wire is prohibited.
