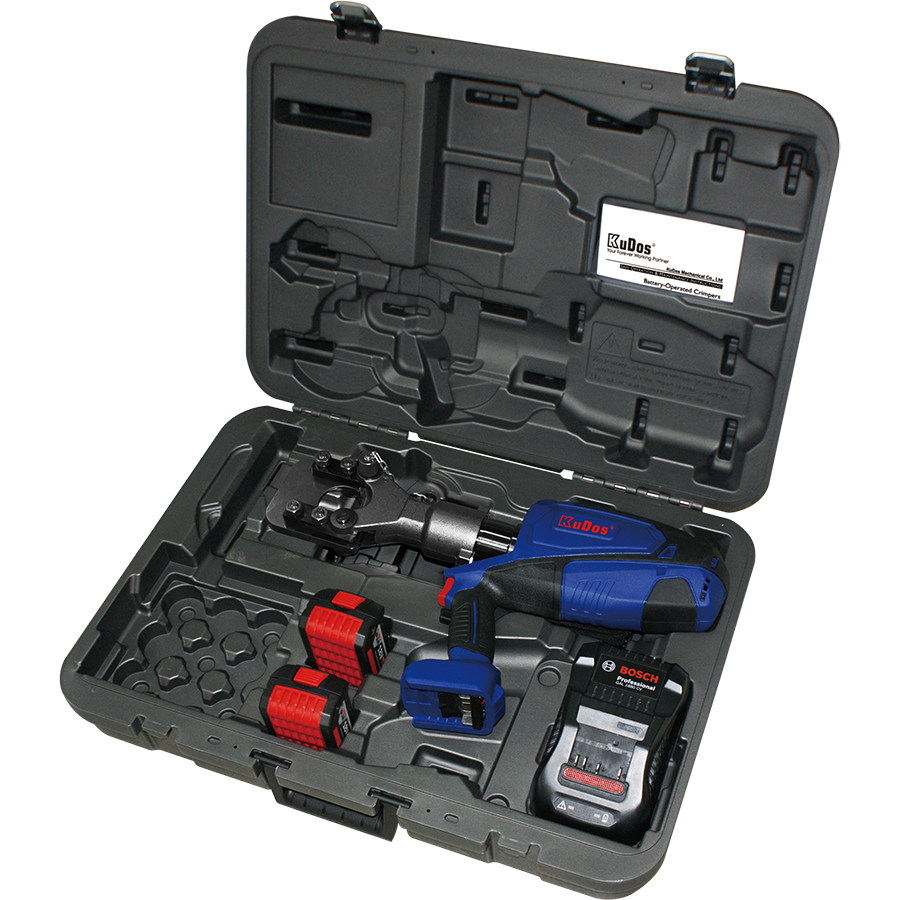

KV-S45

Detail

Length : 479 mm Weight : 6.5 kgs (w/o battery)

■ Specifications : Drive unit : 18V DC motor Charger (GS/CE) : Input voltage : 110V single phase AC Input voltage : 230V single phase AC Input frequency : 50~60Hz Input current : 21.75VA Reservoir capacity : 175 cc

■ Cutting capacity :
Max pressure : 700 bar
Max output : 10.73 tons / 95.5 kN
Wire rope 6x7 : 40 mm
Wire rope 6x12 : 40 mm
Wire rope 6x19 : 40 mm
Soft copper bar : 32 mm
Soft aluminum bar : 40 mm
Soft steel bar : 20 mm
Cu strands : 40 mm
Al strands : 40 mm
ACSR : 40 mm

※Cutting of piano wire is prohibited.
