PH-300HE

Detail

Length : 209 mm
Weight : 2.9 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 14 cc
Max. Output : 7.03 tons / 62.5 kN

■ Crimping Capacity :
Max. compression: 300 mm² aluminum lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembre and Blackburn 6 ton compressors

※Dies sold separately (T16/25/35/50/70/95/120/150/185/240/300)

■ Features :
Light weight, compact and slim design.
Operated by are hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

■ Accessories :

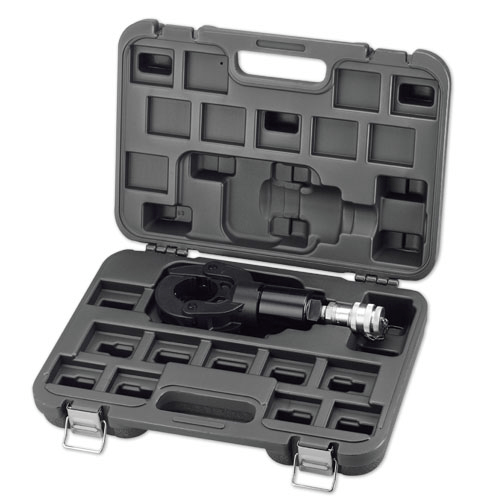

Plastic carrying case
