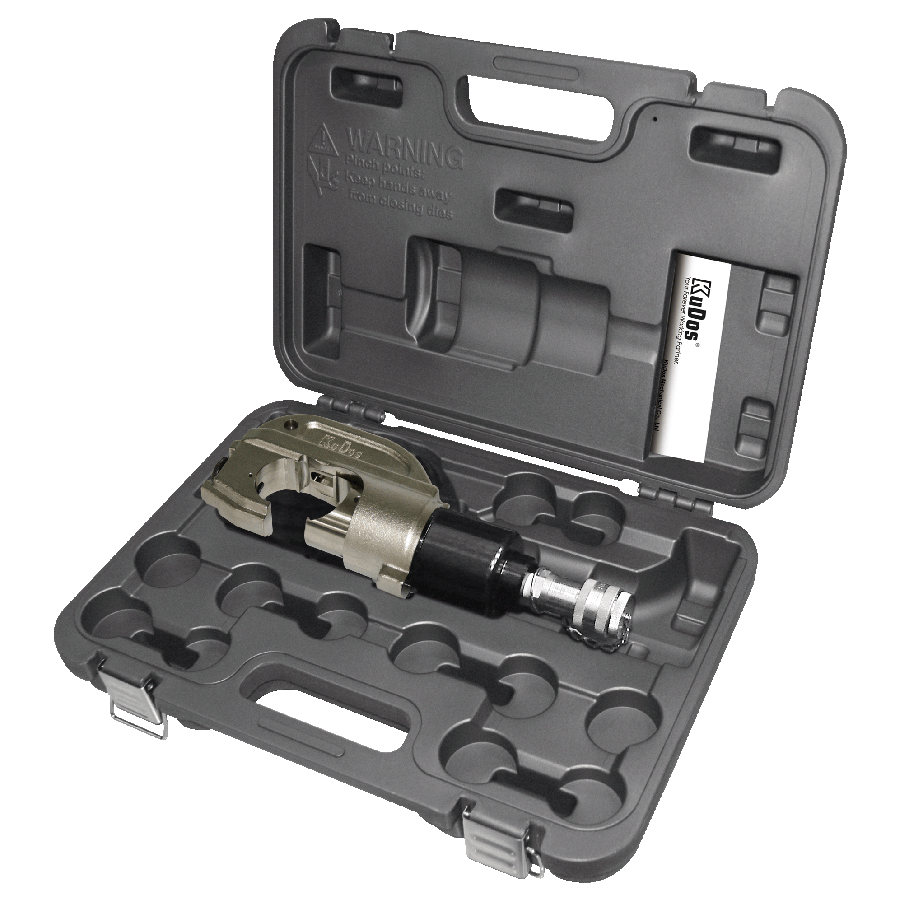

UB-412THE

Detail

Length : 261 mm
Weight : 4.2 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 53 cc
Max. Output : 14.01 tons / 124.6 kN
Jaw Opening : 32 mm

■ Crimping Capacity :
Max. compression : 400 mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Combre and Blackburn 12-ton compressors

※Dies sold separately(CU16/25/35/50/70/95/120/150/185/240/300/400)

■ Features :
C-frame has open jaw for easy access to the fitting.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi ).
Single action cylinder with spring return.
Dies are easy to change.
Crimping capacity identical to UB-412T tool.

■ Accessories :
Plastic carrying case
