UC-6

Detail

Length : 627 mm
Weight : 6.0 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 27 cc
Max. Output : 7.03 tons / 62.5 kN
Jaw Opening : 29 mm
Max. Crimping Capacity : up to 32 mm outer diameter connector (UC-6)

■ Features :
Light weight, compact and slim design.
Pressure relief valve for overload protection.
Automatic low / high-pressure conversion with rapid/slow operating motion.
360° rotating head for convenient operation.
Two-stage hydraulic system reduces the number of pumps required.
Dieless compression to crimp Anderson style connectors up to 500 MCM.

■ Accessories :

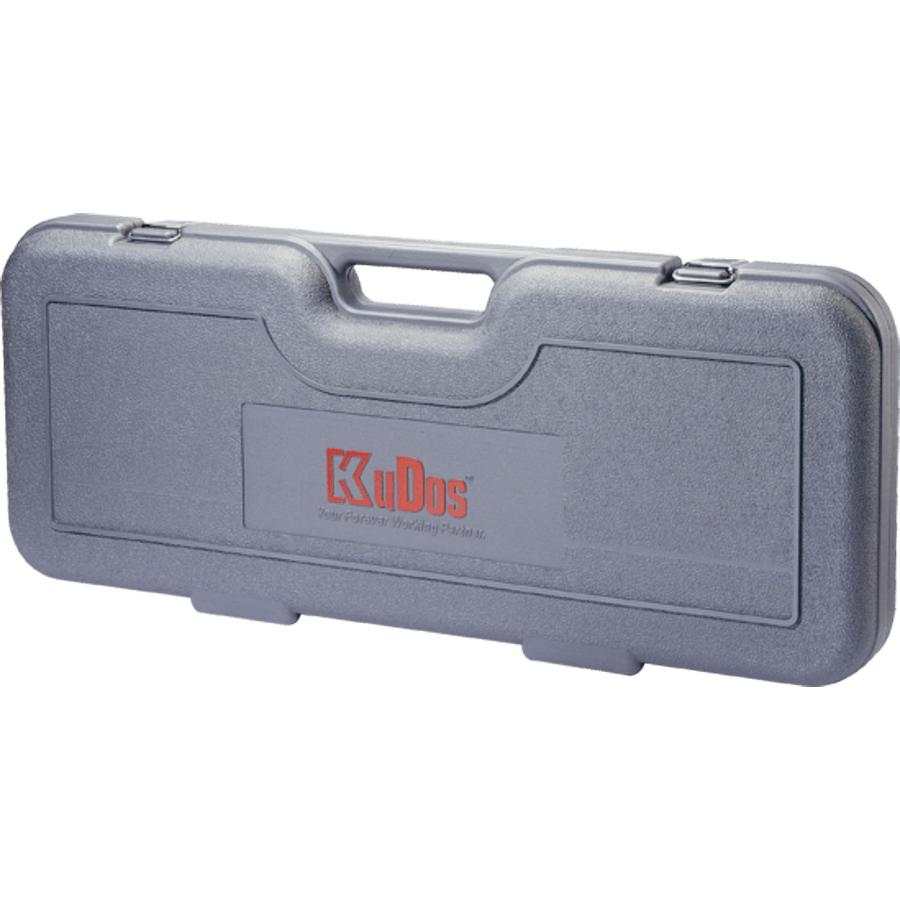

Plastic carrying case
