UCP-2712HE

Detail

Length : 247 mm
Weight : 3.9 kgs

■ Specifications :
Max. Pressure : 700 bar / 10,000 psi
Oil Required : 49 cc
Max. Output : 14.01 tons / 124.6 kN

■ Crimping Capacity :
Max. compression: 400 mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Combre and Blackburn 12-ton compressors
Dies sold separately (CU16/25/35/50/70/95/120/150/185/240/300/400)

■ Features :
Operated by any 700 bar / 10,000 psi rated pump.
Single action cylinder with spring return.
Lock pin design holds die firmly in place.
Die sizes available : CU16~CU400 mm²
Custom die sets are manufactured on request.

■ Accessories :

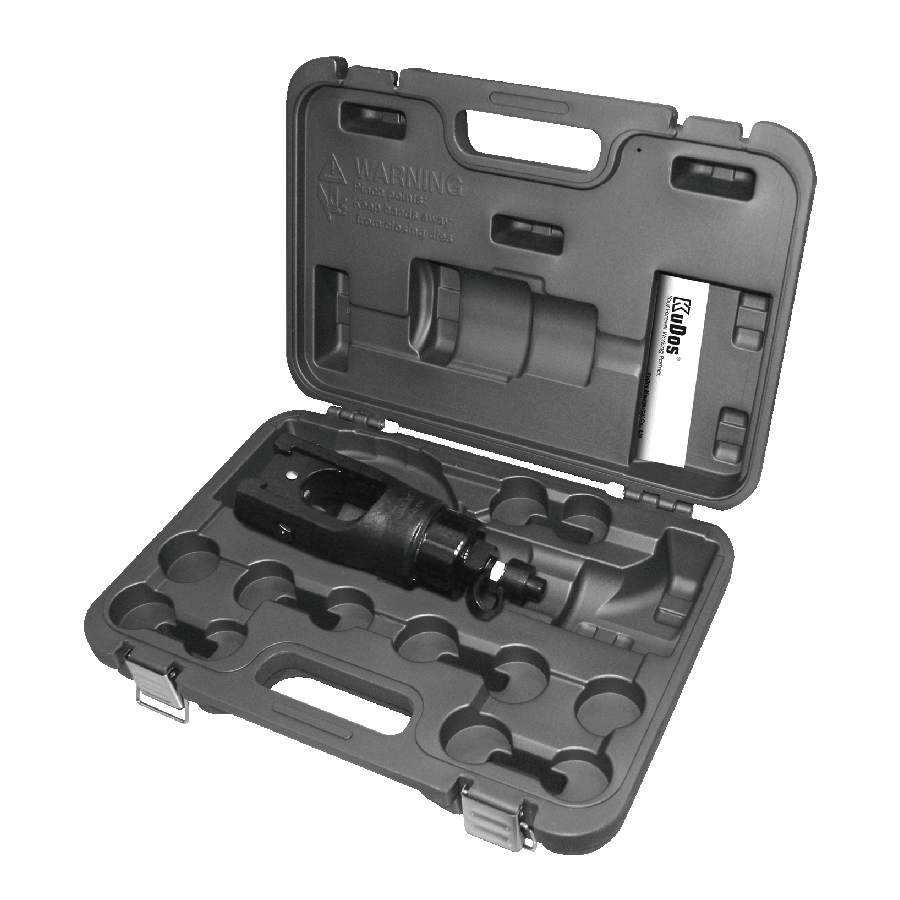

Plastic carrying case
