UK-12HE

Detail

Height : 264mm (w/o jaws)
Weight : 8.8 kgs

■ Specifications :

Max. pressure : 700 bar
Oil required : 190 cc
Max. output : 14.01 tons / 124.6 kN
Ram stroke : 80 mm

■ Features :

2/3 jaws combination puller head as jaws can be installed with 2 or 3 jaws as changeable type against the limited space.
Jaws proceed with forging made parts and special treatment for providing best strength and long life use.
360? rotary handle swivel slevis allows pumping at all directions.
Unique safety valve designed to reduce the risk of the puller overload by limiting the applied force.
Complete hydraulic puller allows effortless generation of force and dismounting.
The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10000psi)

■ Accessories :

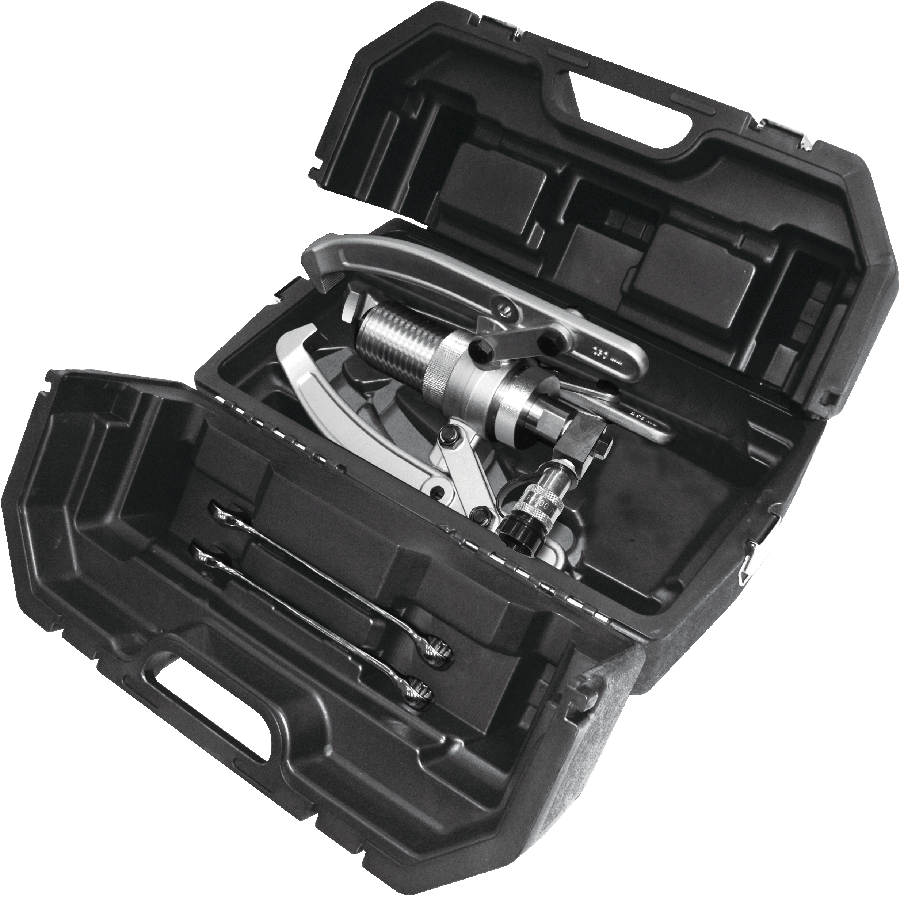

Plastic carrying case
