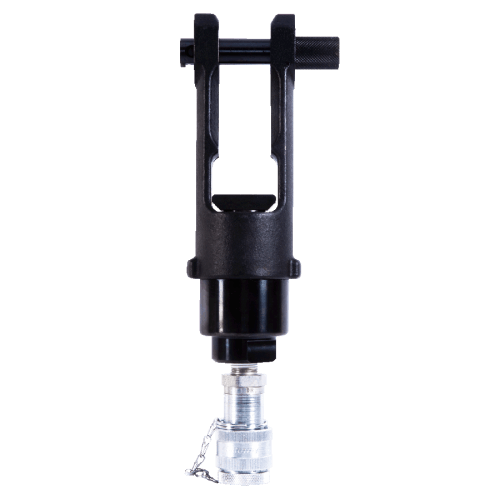

Detail
Length : 213 mm
Weight : 2.4 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 24 cc
Max. Output : 9.73 tons / 86.6 kN
■ Crimping Capacity :
Accepts BEKU type dies
Hex. Crimping : 10-240 mm²
Cu sleeves&lugs NFC 20.130:20 to 240 mm²
Cu or Al bare or insulated sleeve : E54 to E230
Cu or Al sleeves&lugs DIN 48083 : KZ6 to KZ25
Pre-rounding : 35 to 240 mm
※Dies sold separately
■ Features :
Light weight, compact and slim design.
Operated by are hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
■ Accessories :

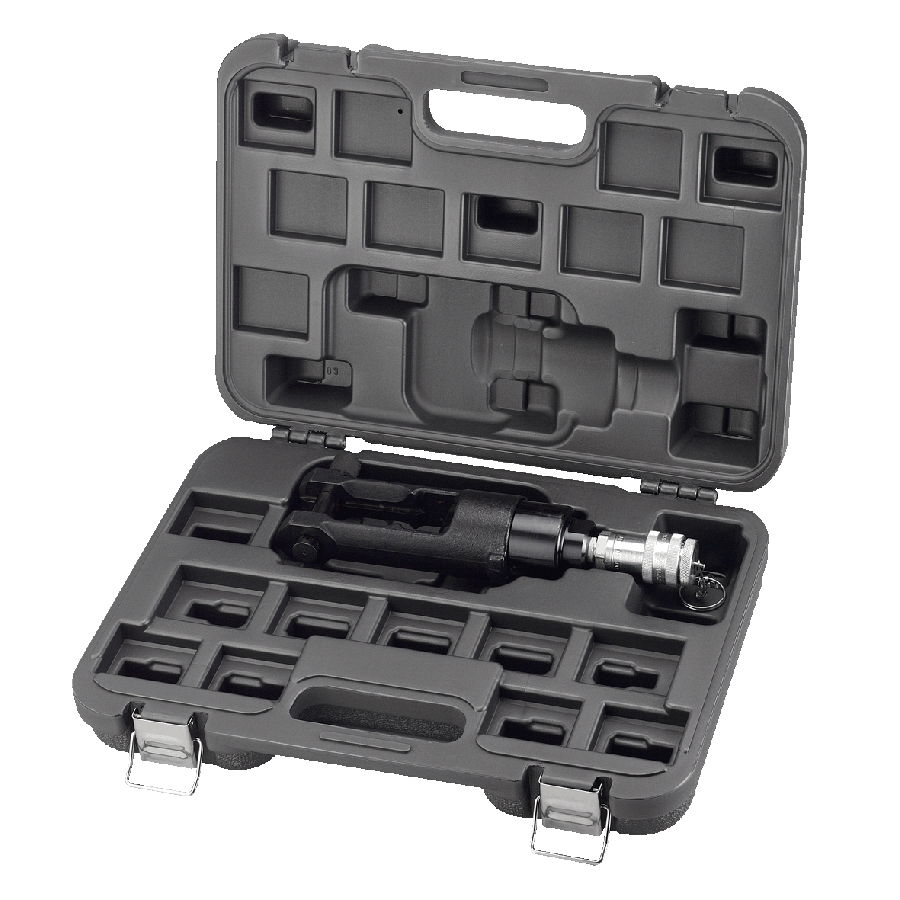

Plastic carrying case
