Detail
Hight : 125 mm
Weight : 7.6 kgs
■ Punch driver :
Ram Stroke : 25 mm
Oil Required : 47 cc
Max. Output : 14.01 tons / 125 kN
■ Punching capacity :
Max. Thickness
Stainless Steel : 1.6 mm
Mild Steel : 3.2 mm
4 inch diameter hole on 3.2 mm thickness mild steel
Single action cylinder with spring release
■ Features :
Suitable to punch holes in electrical panels, switchboards and others.
Fast, easy and simple to operate.
Compact design makes this a perfect choice for use on construction sites and maintenance jobs.
Powerful 14.01 ton hydraulic ram.

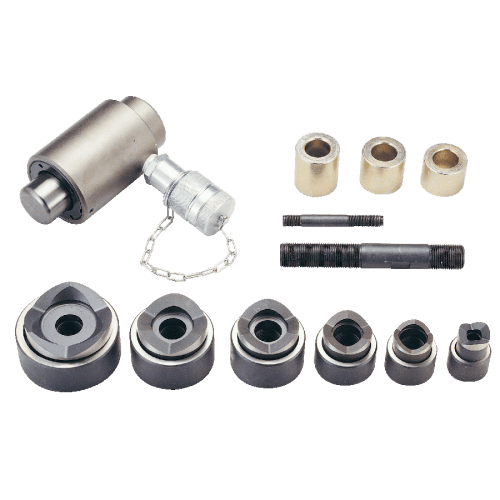

■ Accessories :
■ PN-052
? PDV-10
? Draw stud (3/4”, 3/8”)
? Spacer(S,M,L)

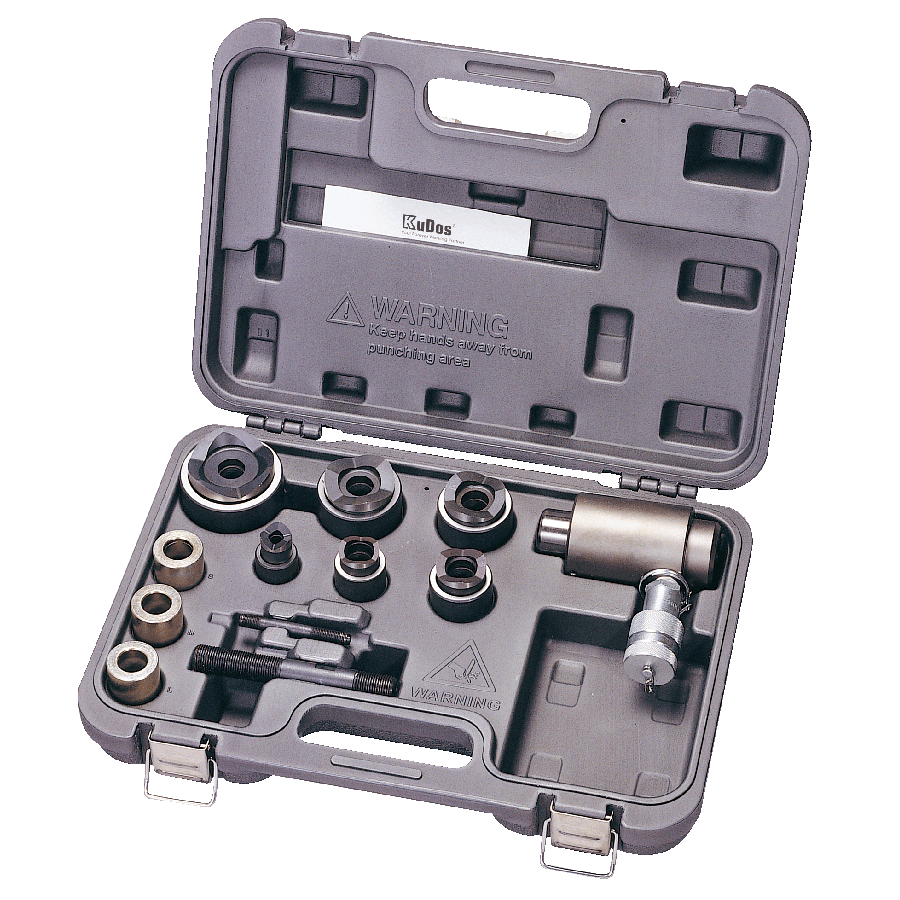

? Plastic case
? 6 Punch die sets :
1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”
■ PN-052M
? PDV-10
? Draw stud (3/4”, 3/8”)
? Spacer(S,M,L)
? Plastic case
? 6 Punch die sets :
16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm
