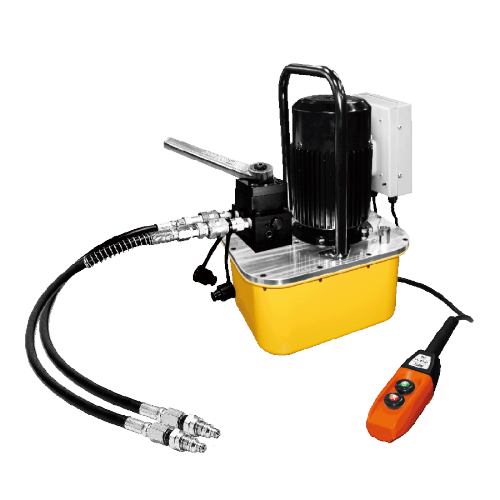

EP-76MD

 Detail

Height : 480 mm
Weight : 25.0 kgs (w/o oil)

■ Specifications :
Max. pressure : 700 bar
Oil required : 8000 cc
4 way, 3 position manual valve
Drive unit : 220V/AC or 110V/AC 50/60Hz, 1/2Hp

■ Oil delivery :
3.9L / min at low pressure
0.2L / min at high pressure

■ Features :

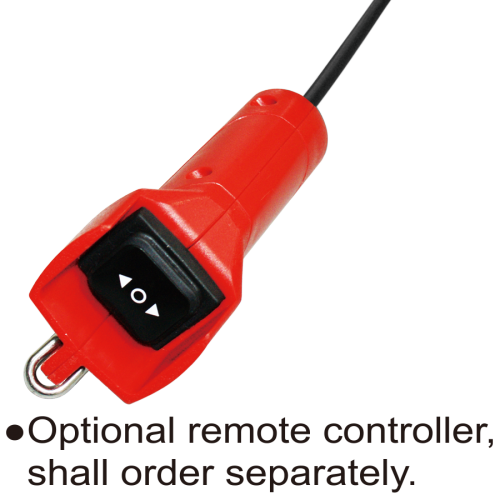

With 5 meter remote control cable provides the user complete control to advance and retract.
Two speed high performance.
Equipped with single-phase, thermal protected induction motor to reduce noise level.
Pressure holds at 700 bar, ideal for maintenance and construction.
Equipped with large-capacity one piece metal oil tank.

■ Accessories :
Hydraulic hose should be ordered separately.
