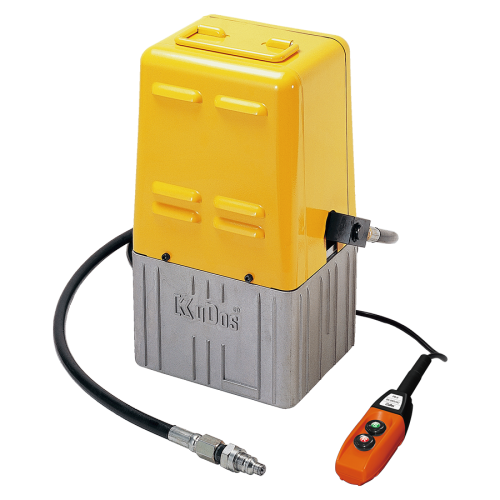

Detail
Height : 374 mm
Weight : 18.0 kgs (w/o oil)
■ Specifications :
Max. pressure : 700 bar
Oil required : 3000 cc
Input : single phase 50/60Hz 110V, 120V, 220V, 230V
■ Oil delivery :
2.6 L / min at low pressure
0.32 L / min at high pressure
■ Features :
Fully remote controlled, allows the operator to advance, hold or retract at any time.
Two-stage pumping action.
Output force can be adjusted as necessary by stopping the advance or retract.
3/4 HP heavy-duty motor.
Durable steel construction with built-in carrying handle.
Low amperage requirement.
Oil level is visible.
■ Accessories :
2M hydraulic hose attached
