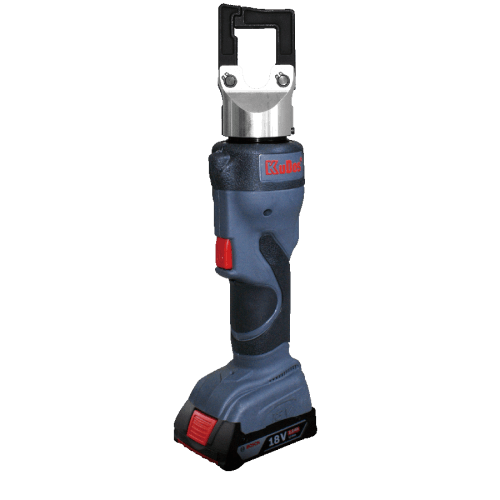

Detail
Length : 328 mm
Weight : 2.0 kgs(w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60 Hz
Reservoir capacity : 48 cc
■ Crimping Capacity :
Max pressure : 420 bar
Max output : 4.73 tons / 42.1kN
Max compression : 150 mm² copper
Accepts BEKU type dies
Stock Dies are for DIN46235 terminals
※Dies sold separately
