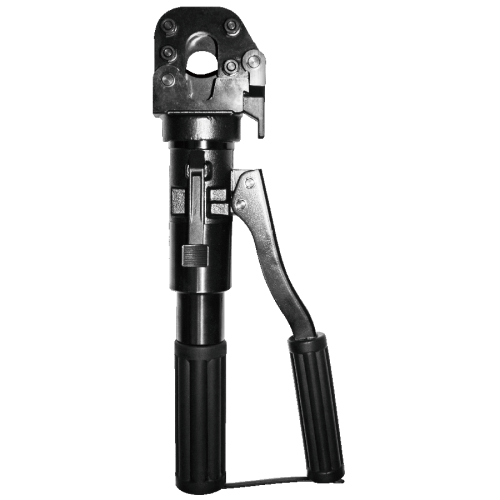

Detail
Length : 344 mm
Weight : 2.5 kgs
■ Specifications :
Max pressure : 550 bar
Oil required : 22 cc
Max output : 5.85 tons / 52.0 kN
■ Cutting capacity :
Wire rope 6x7 : 16 mm
Wire rope 6x12 : 20 mm
Wire rope 6x19 : 20 mm
Soft copper bar : 20 mm
Soft aluminum bar : 16 mm
Underground cable : 18 mm
Soft steel bar : 16 mm
Reinforcing rod : 13 mm
Cu strands : 20 mm
Al strands : 20 mm
ACSR : 21 mm
Guy wire 1x7 : 15 mm
Guy wire 1X19 : 16 mm
※Cutting of piano wire is prohibited.
■ Features :
180? rotating head for convenient operation.
Superior guillotine type cutting for less jamming than shear type cutters.
Single stage pumping action.
All blades are easily replaceable.
Flip-top latch for easy insertion of cutting material.
Single stage pump action with spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.
■ Accessories :

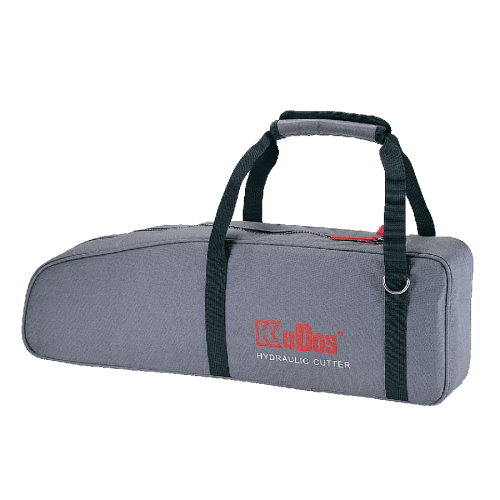

Carrying bag
