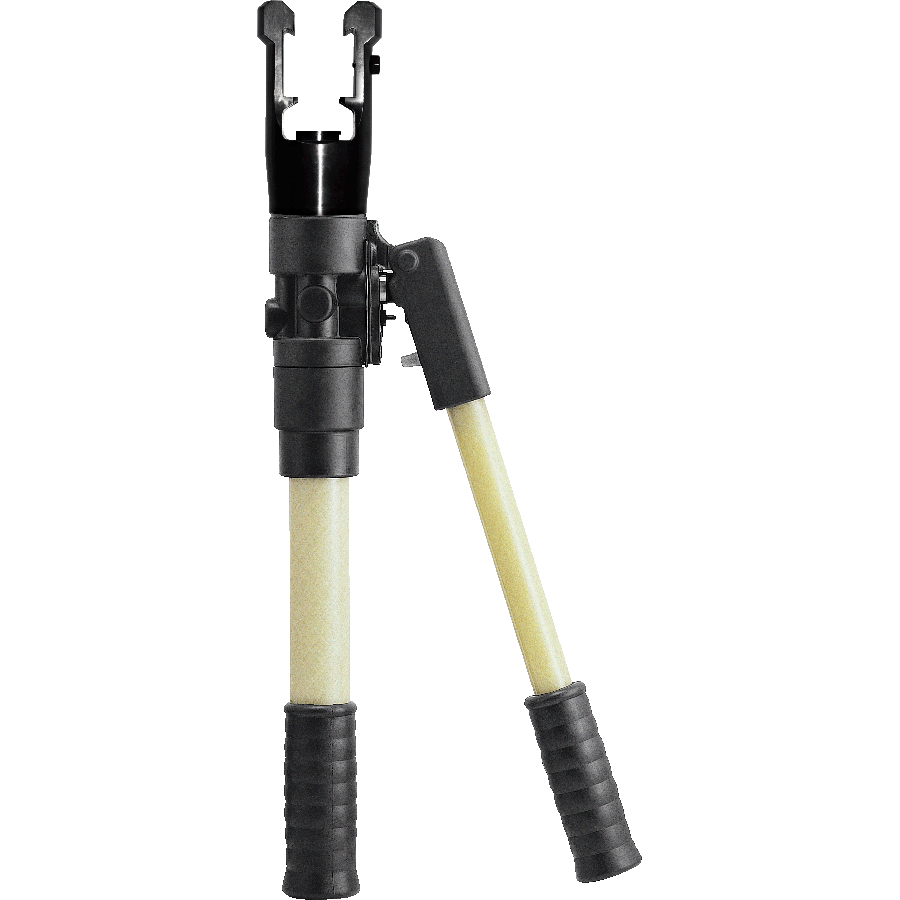

Detail
Height : 600 mm
Weight : 5.3 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 48 cc
Max Output : 12.7 tons / 125 kN
Max. Opening : 26 mm
■ Crimping Capacity :
U-Type Head
Crimping force : 12.7 tons / 125 kN
Main Applications :
Cu conductors : 400 mm²
AI conductors : L 300 mm²
C sleeves connector : 120 mm²
■ Features :
Fiberglass handles are durable and light wight.
Pressure relief valve for overload protection.
Automatic low/high-pressure conversion with rapid/slow operating motion.
350° rotating head for convenient operation.
External adjustable relief valve.
Two-stage hydraulic system reduces the number of pumps required.

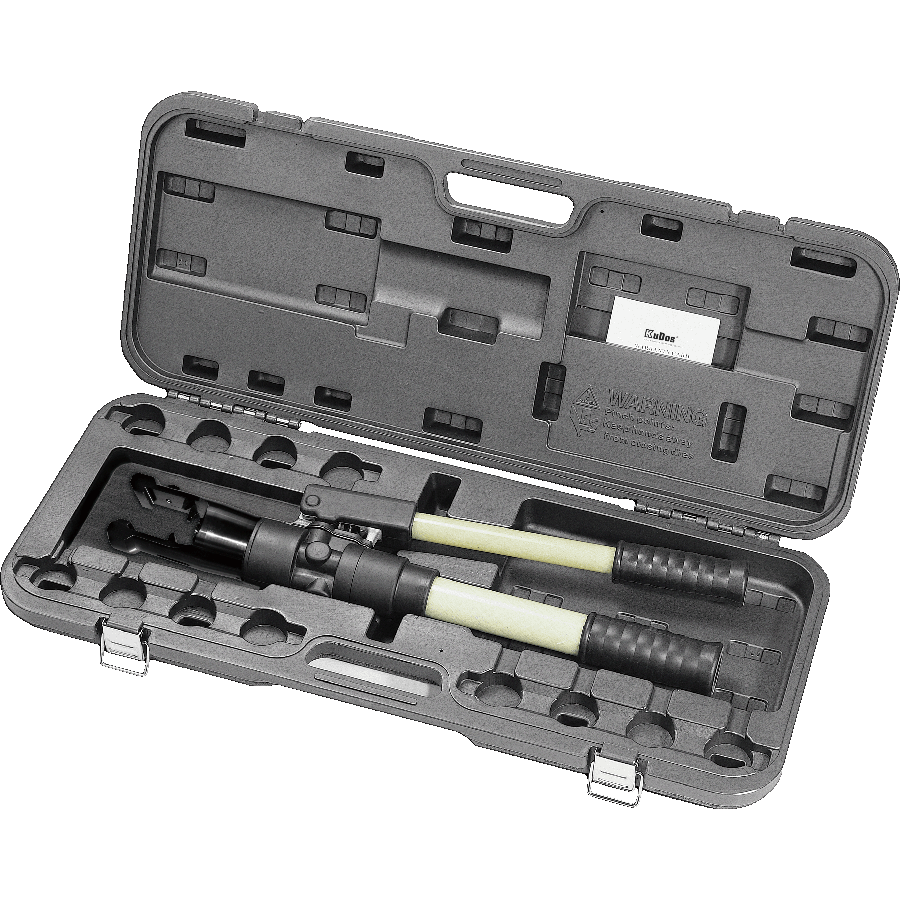

■ Accessories :
Plastic carrying case
