Detail
Height : 454 mm
Weight : 14.2 kgs (w/o oil)
■ Specifications :
Max. pressure : 700 bar
Oil required : 3000 cc
2 way, 2 position manual valve
Drive unit : 220V/AC or 110V/AC 50/60Hz
■ Oil delivery :
2.6 L / min at low pressure
0.32 L / min at high pressure
■ Features :

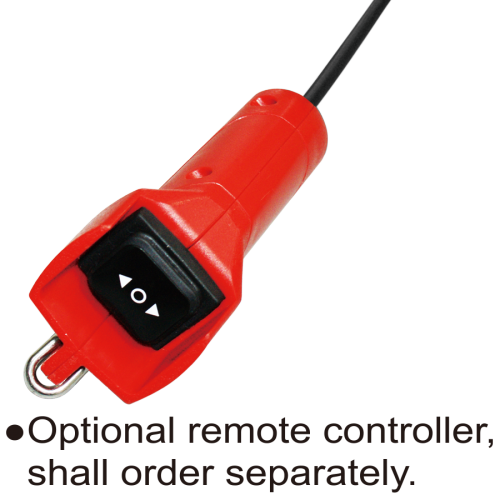

With 5 meter remote control cable provides the user more convenient to operate advance by pressing "UP" botton, on the property of manual control has to retract with manual lever as the "DOWN" botton invalid functional.
Two stage high performance.
Pressure holds at 700 bar, ideal for maintenance and construction
Equipped with large-capacity one piece metal oil tank.
■ Accessories :
Hydraulic hose should be ordered separately.
