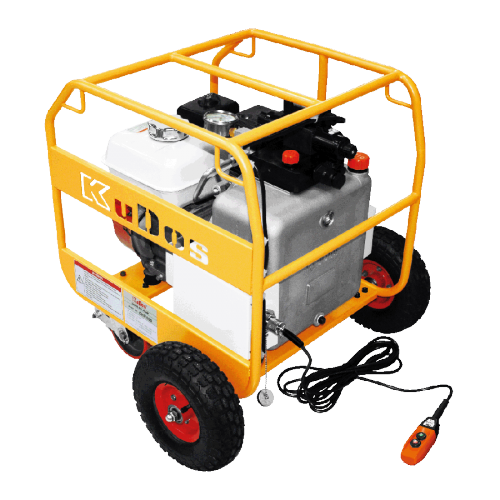

Detail
Height : 667 mm
Weight : 66.5 kgs (w/o oil)
■ Specifications :
Max. pressure : 700 bar
Oil required : 9.5 L
Motor size : 6.5 HP
Valve type : 4 way, 3 position solenoid valve
Motor manufacturer : Honda
Manually controlled engine
■ Oil delivery :
13.4 L / min at low pressure
2.4 L / min at high pressure
■ Features :
Pressure gauge can be located in upright position for better reading.

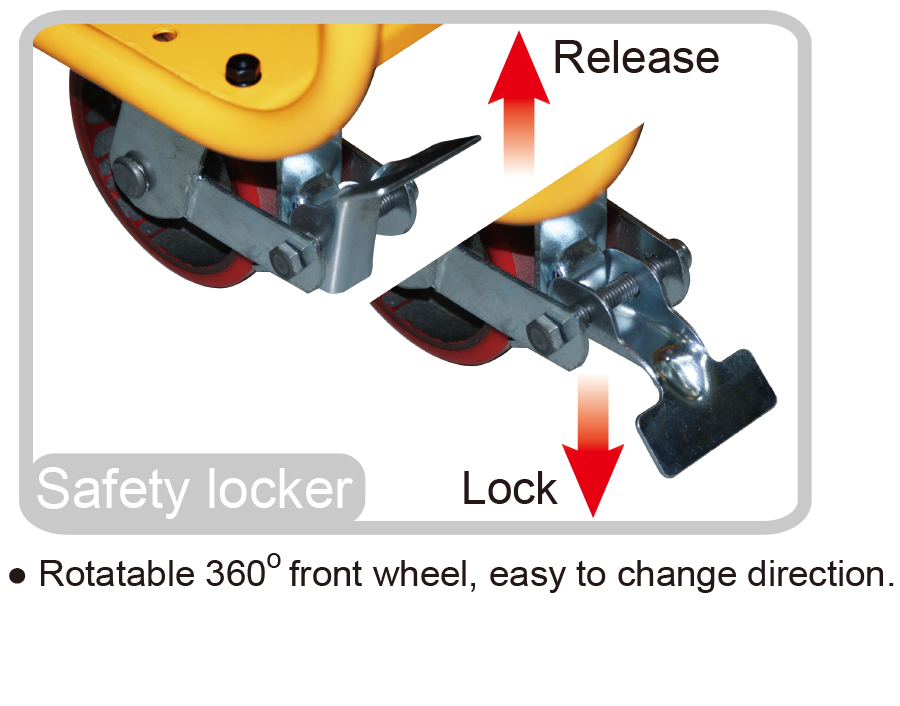

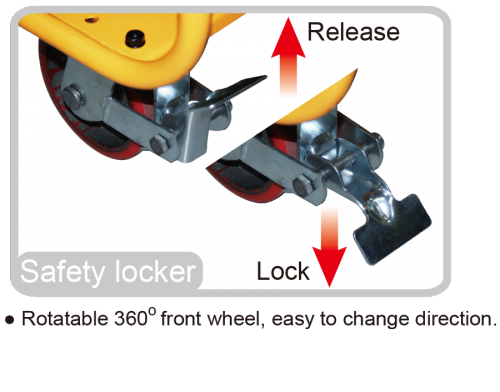

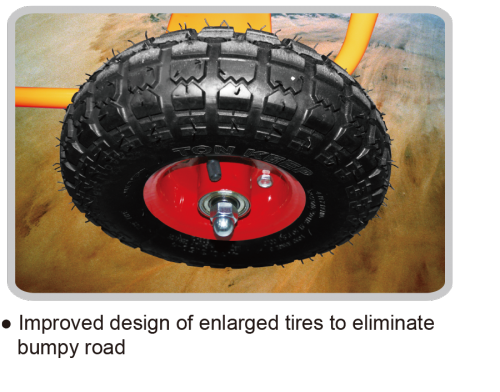

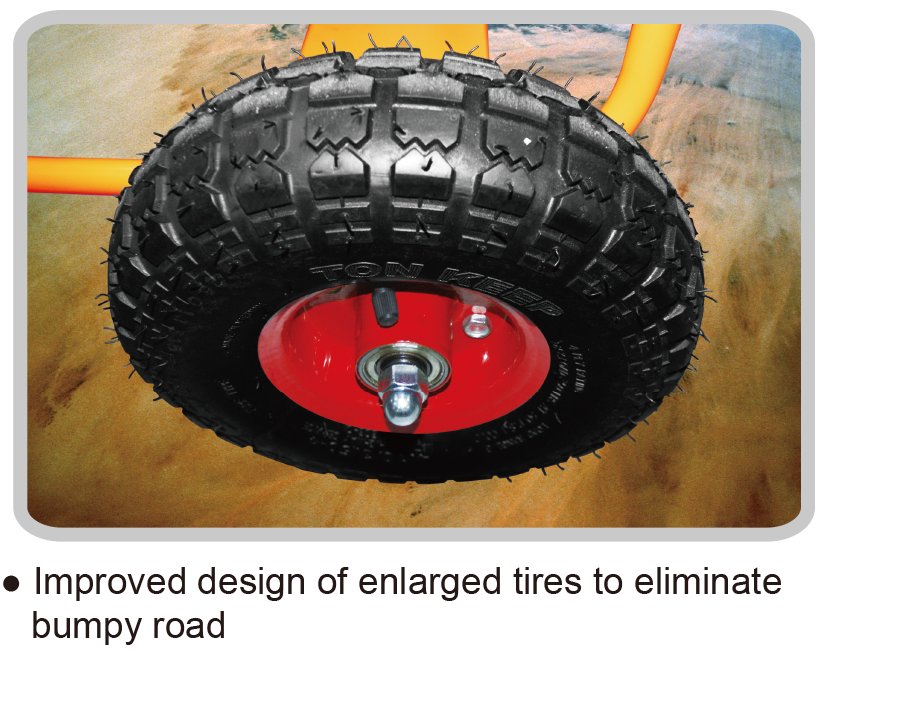

Supplied with inflatable tires and rotated 360? front wheels for changing direction easily.
High efficiency and fast working gasoline pump.
GHP-5SD permits the user to advance, hold and retract the ram at both single and double acting presses.
Suitable for double acting compression heads used in transmission line stringing and maintenance or single acting compression heads for overhead work fields.
