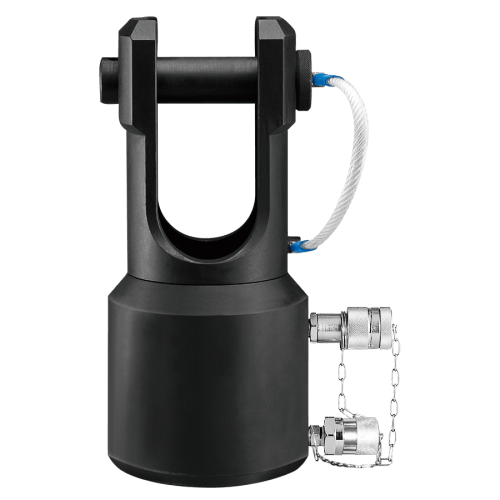

     Detail

    Length : 289 mm
    Weight : 14.0 kgs

    Specifications :
    Max. Pressure : 700 bar
    Oil Required : 398 cc
    Max. Output : 49.25 tons / 438.1 kN
    Ram Stroke : 36.7 mm

    Crimping Capacity :
    Max. crimping capacity: 1000 mm²
    Customized die sets can be ordered

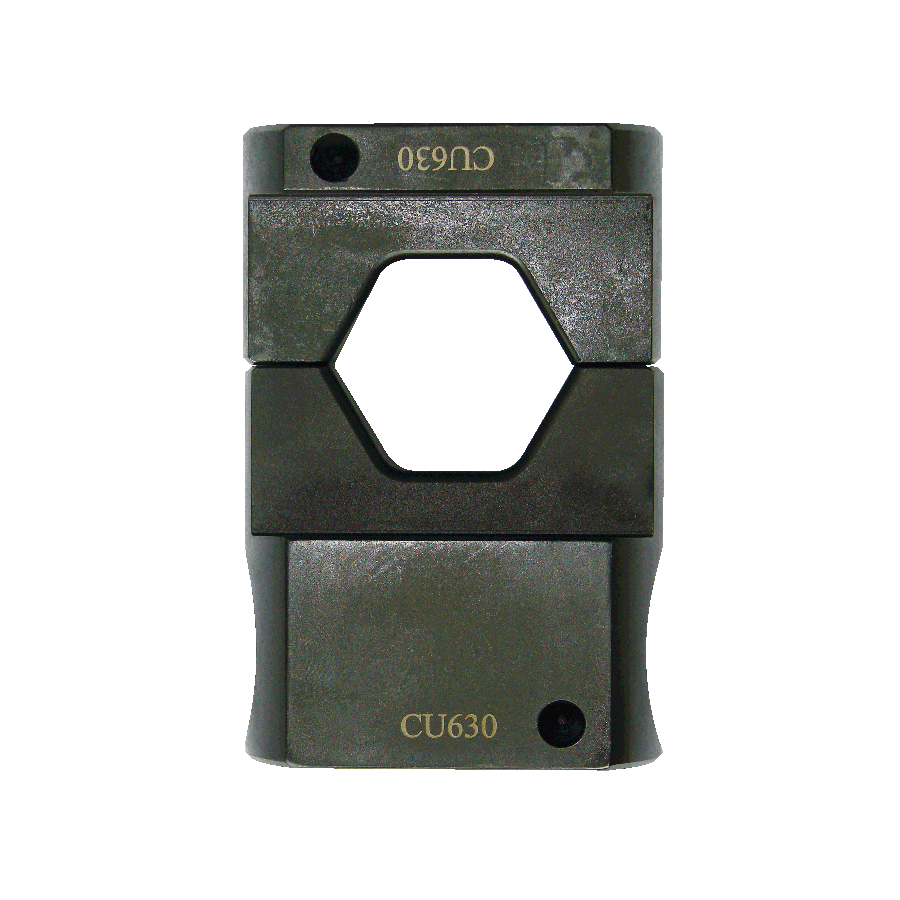

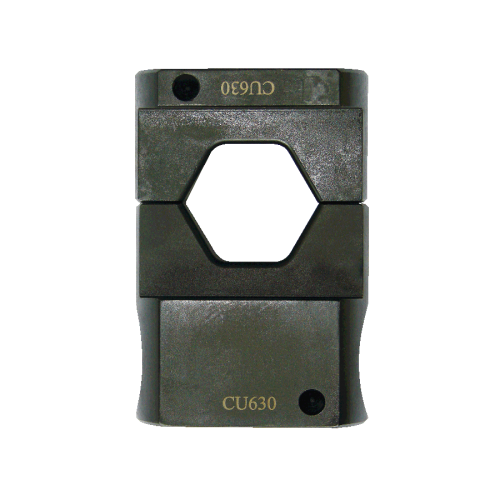

    CU 400/500/630/800/1000 sold separately

    Features :
    U-type head design is solid and durable
    Lock pin design holds die firmly in place.
    Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
    Double acting compression head.
    Fast Retraction.

    ■ Accessories :

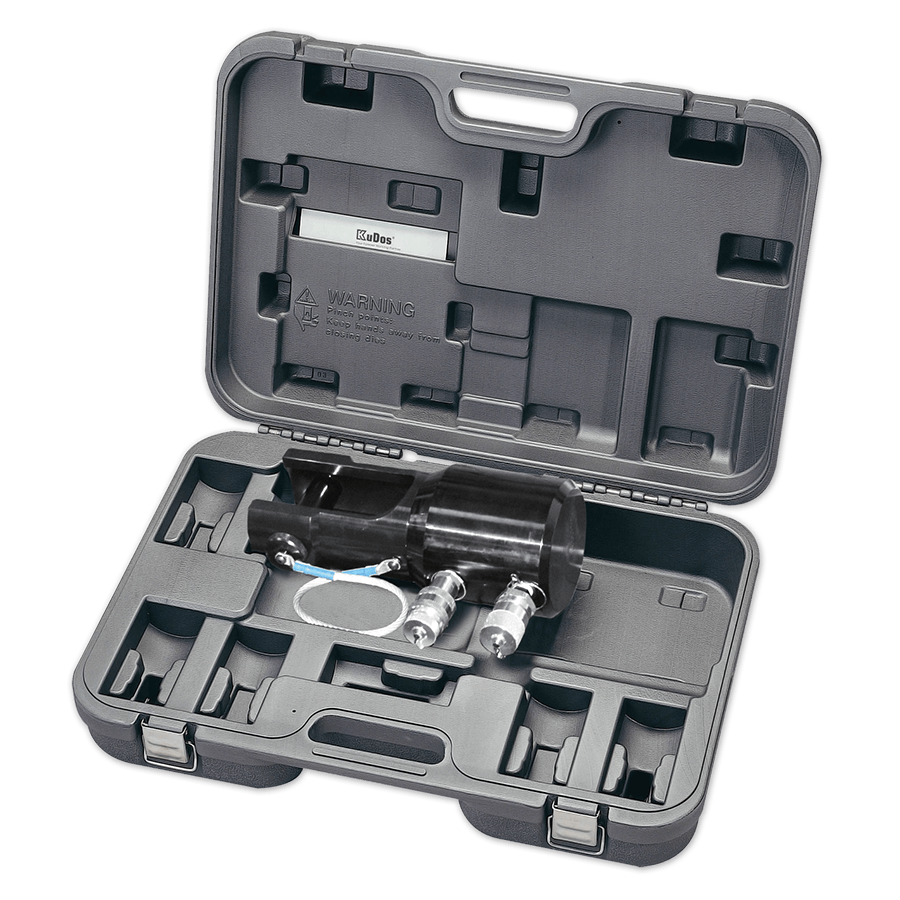

    Plastic carrying case

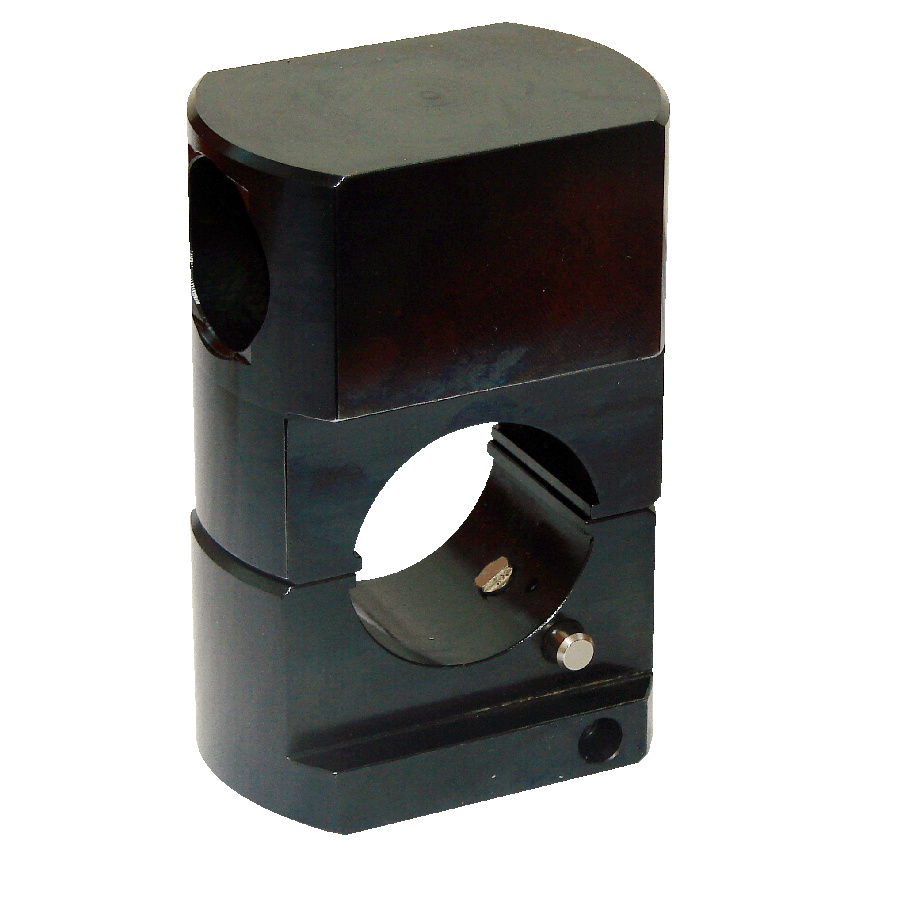

    Model No . ADP-451000HE

    This adapter is designed for hydraulic
    compression head HYCP-451000HE /
    HYCP-451000D to interchange with 12-ton
    (up to 400 mm²)
