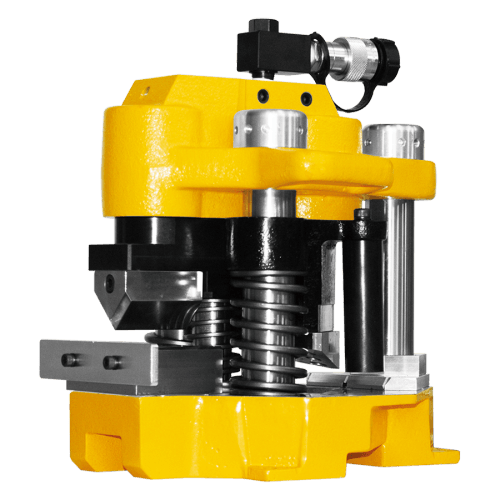

FM-30

 Detail

Dimension : 325.4 mm(L) × 282.4 mm(W) × 343.1 mm(H)
Weight : 51.7 kgs

■ Specifications :
Max. Pressure : 700 bar
Acceptive Materials : SS 400 & SUS 304
Max. Processing Dimension : 75 mm × 75 mm × 6 mm

■ Features :
? Work with angle steel or stainless steel up to 75 x 75 x 6 mm

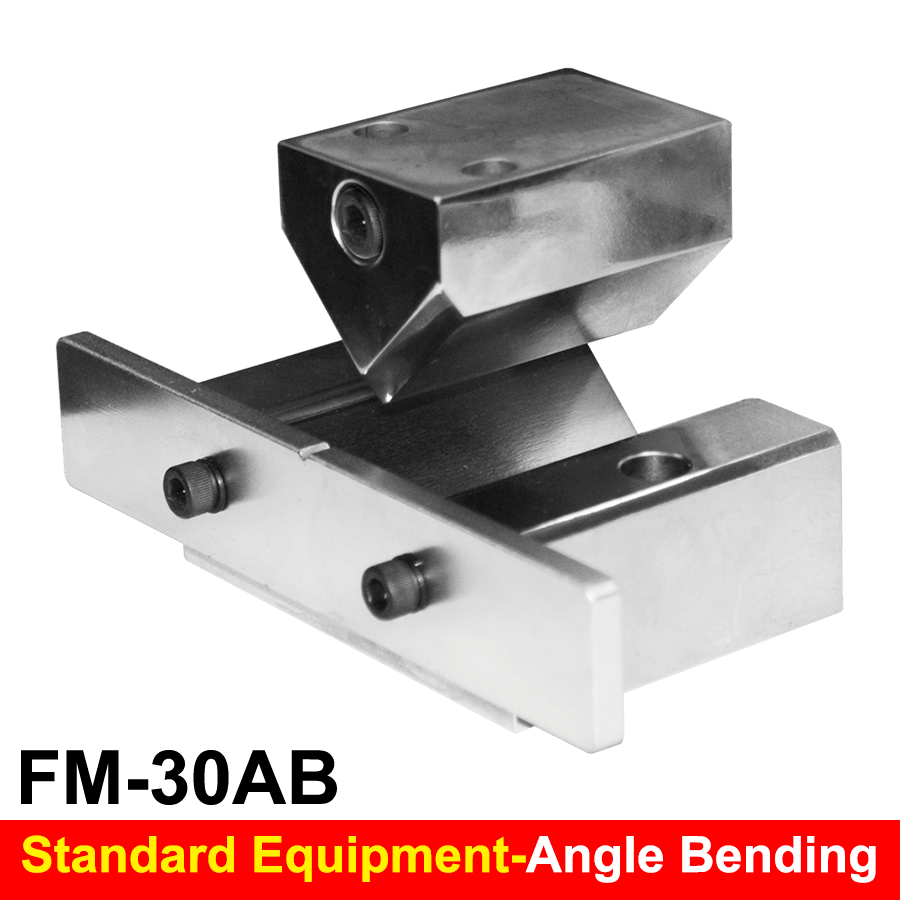

? V notching and bending dies are integrated into the machine. Only punching dies need to be changed
? Special changeover shaft permits steel forming to be done from V notching to bending within seconds

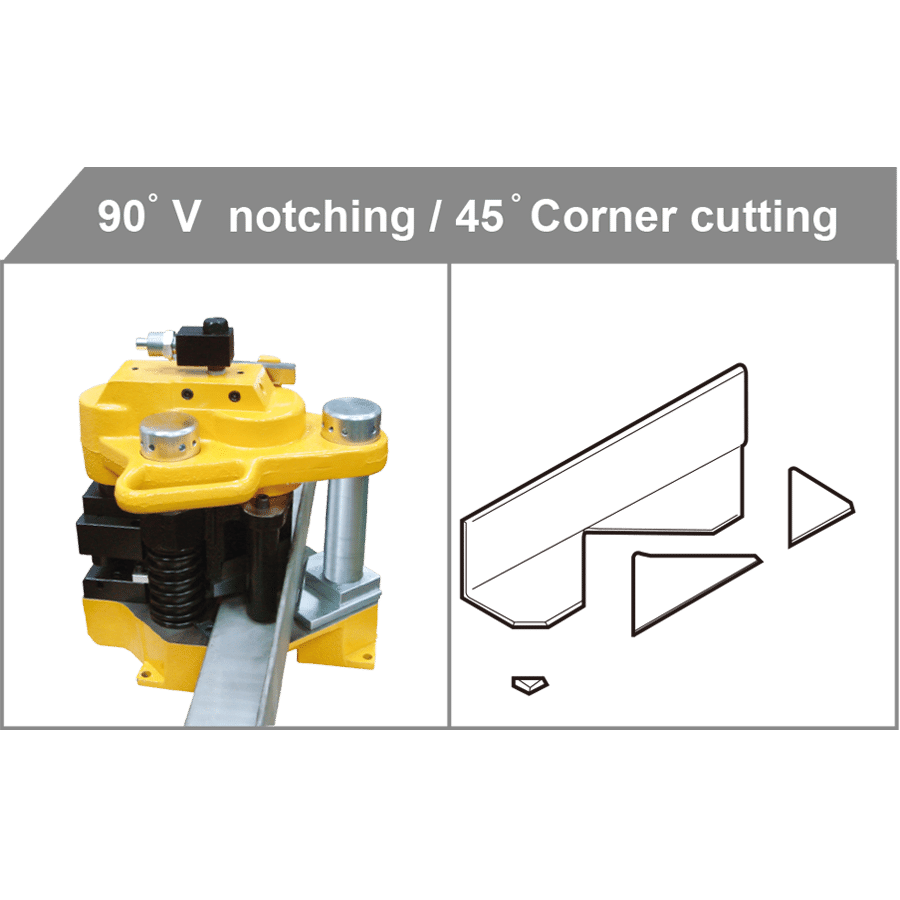

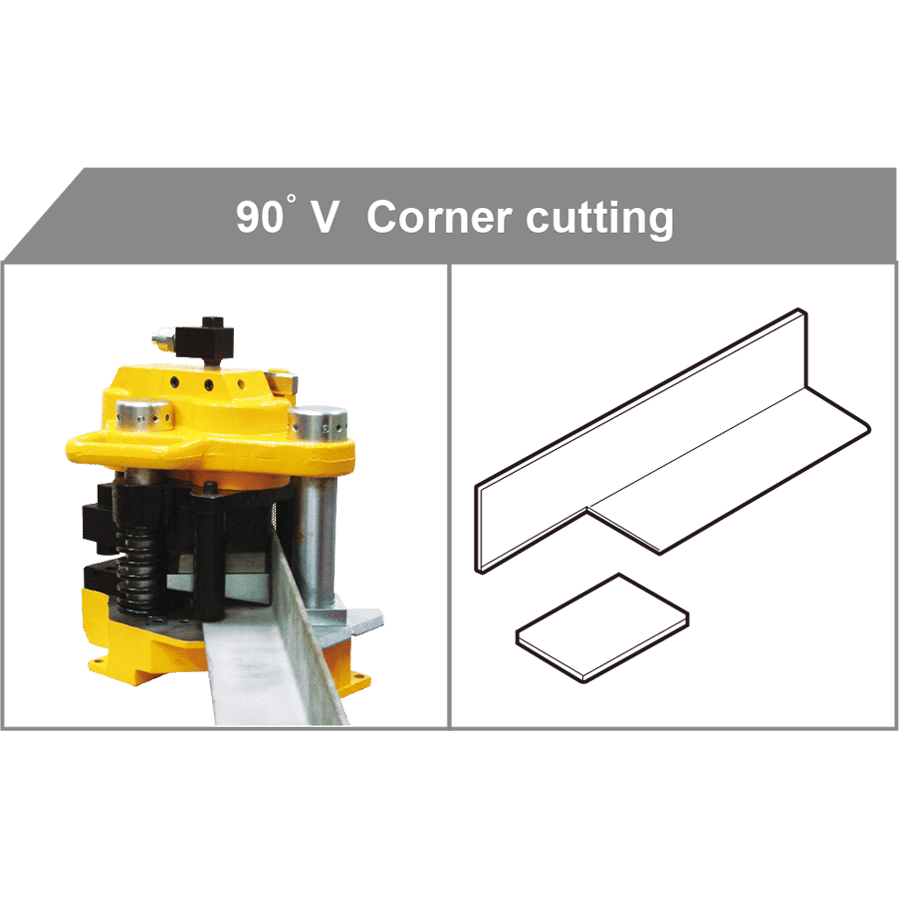

? By adjusting clamp base, V notch can be positioned for 3 mm to 6 mm, 90 degree or 45 degree corner cut
? Can be used with any hydraulic pumps having pressure rating of 700 bars

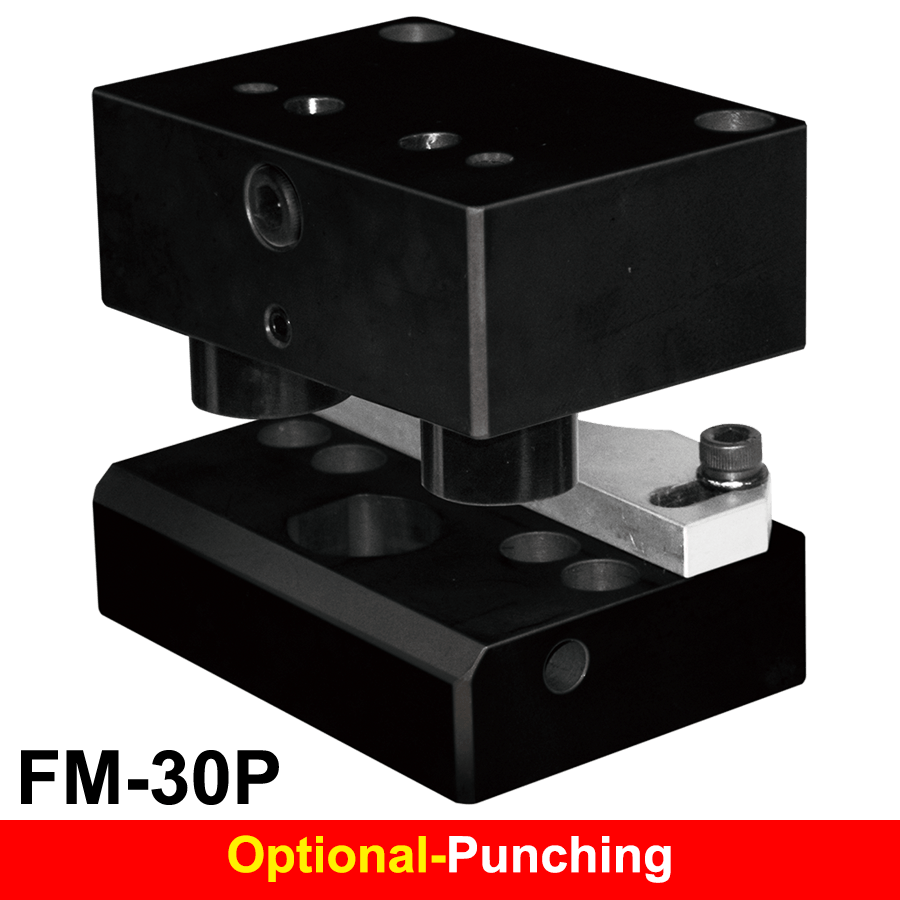

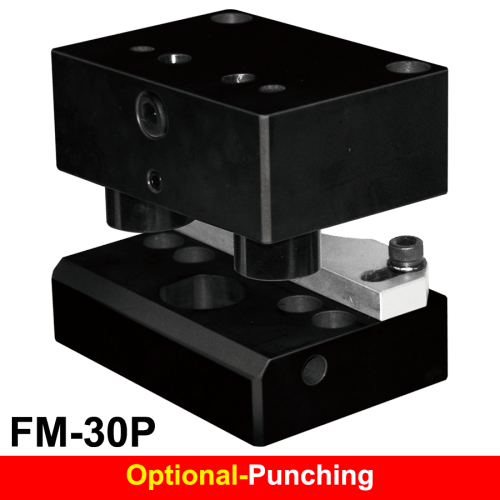

※ Punching dies are sold separately.

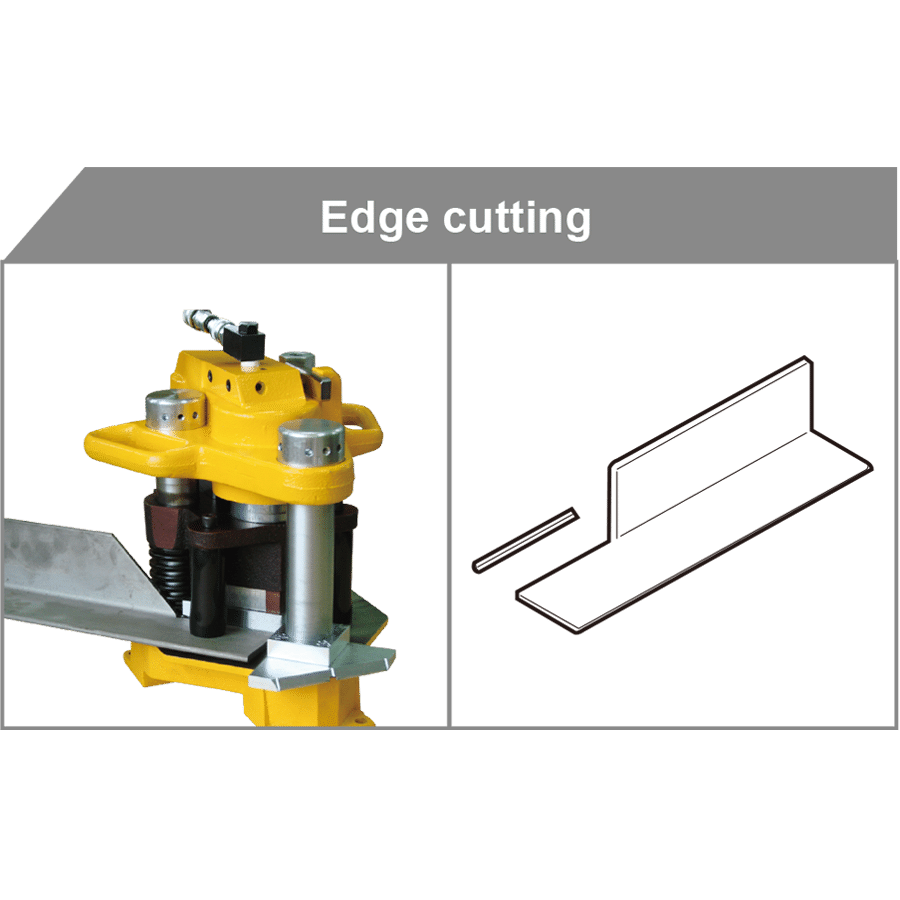

■ Cutting Capacity ?Max. Output : 25.69 tons / 228.5 kN ?Max. Width : 15 mm ?Oil Required : 119.4 cc

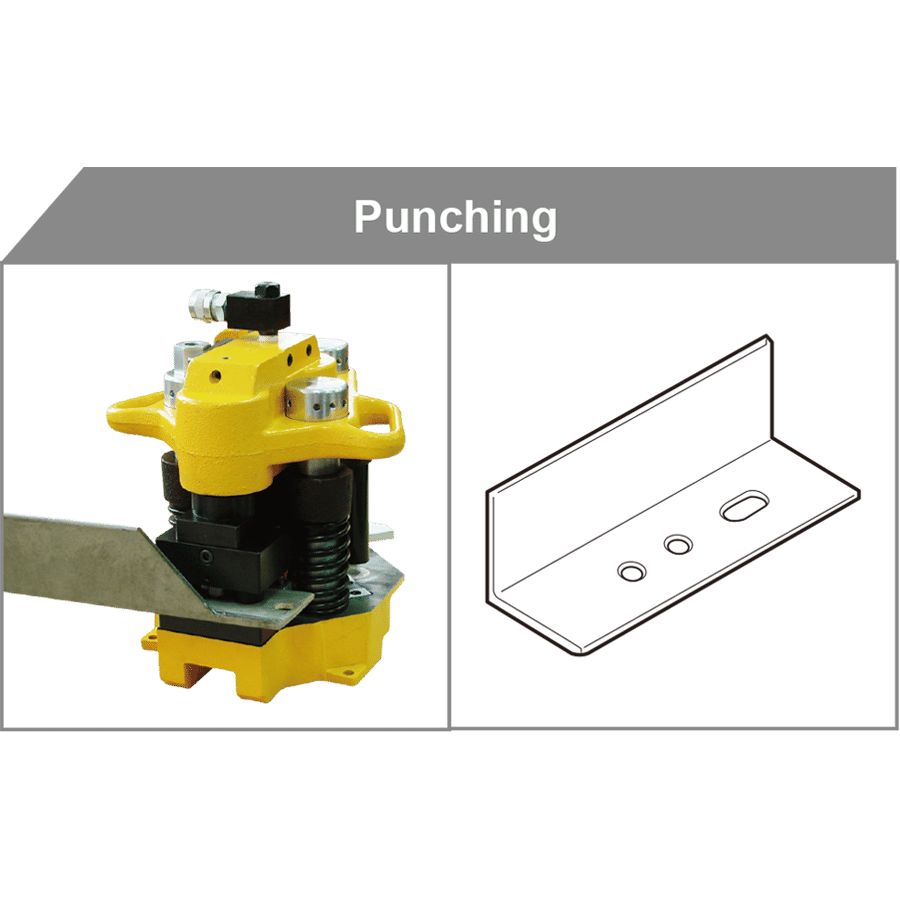

■ Punching Capacity : ?Max. Output : 19.07 tons / 169.7 kN ?Max. Width : 10.95 mm ?Oil Required : 46.8 cc

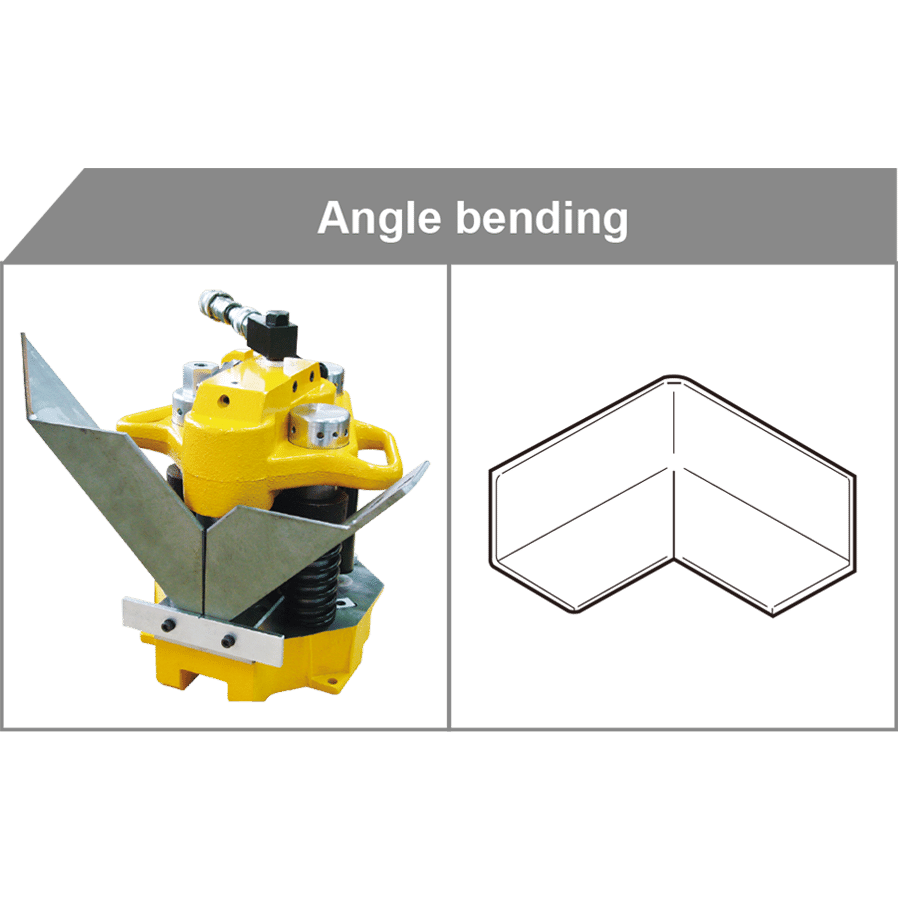

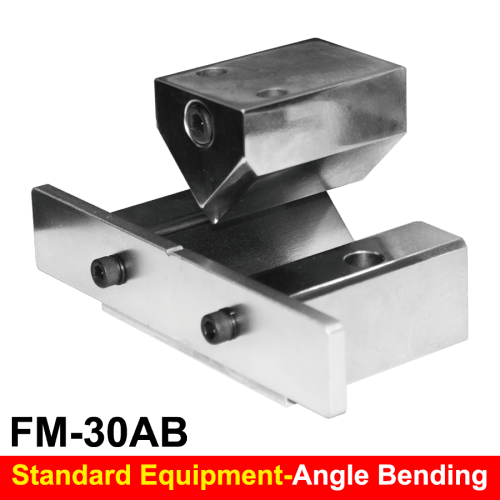

■ Angle Bending Capacity : ?Max. Output : 19.07 tons / 169.7 kN ?Max. Width : 35 mm ?Oil Required : 86.2 cc
