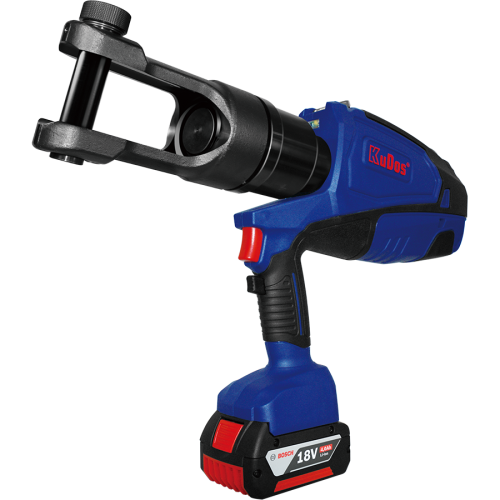

Detail
Length : 489 mm
Weight : 8.8 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc
■ Crimp capacity :
U-Type head
Max pressure : 700 bar
Crimping force : 249 tons / 221 kN
※Dies sold separately
■ ADP-630HE :
This adapter is designed for hydraulic compression head to interchange with die sets from other 12-ton tools ( up to 400 mm² )
