Detail
Height : 386 mm
Weight : 5.5 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75 VA
Reservoir capacity : 120 cc
※Insulated cap should be ordered separately.
■ Crimp capacity :
Max pressure : 700 bar
Jaw opening : 29 mm
Oil required : 26.6 cc
Crimping force : 7.03 tons / 62.5 kN
Main application : Anderson type connectors up to 500 MCM

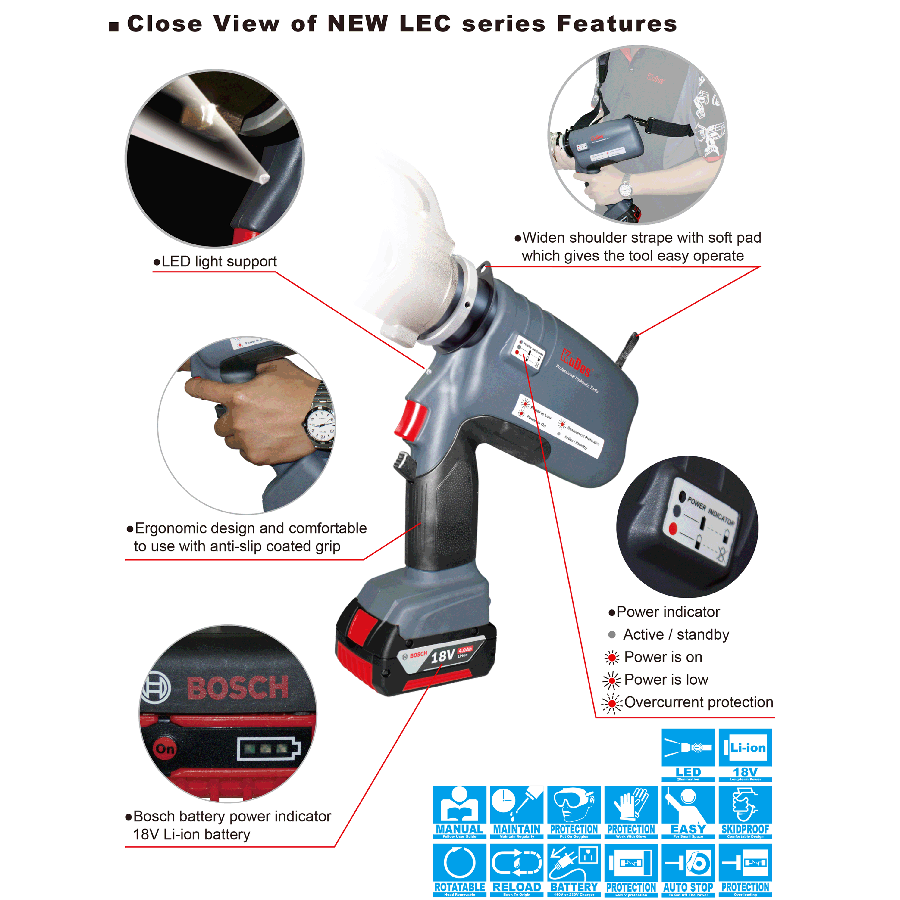

■ Features :
360? rotating head for convenient operation.
Dieless compression to crimp Anderson style connectors up to 500 MCM
