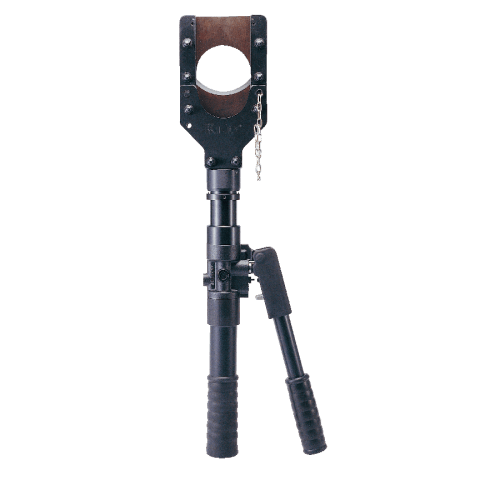

HYCC-P85

 Detail

Length : 716 mm
Weight : 9.6 kgs

■ Specifications :
Max pressure : 700 bar
Oil required : 66 cc
Max output : 5.47 tons / 48.7 kN

■ Cutting capacity :
Cu strands : 28 mm
Al strands : 38 mm
CCP cable : 85 mm
Underground cable : 50mm (except armoured cable)

※Cutting of piano wire is prohibited.

■ Features :
Lock pin type cutting head.
Two stage pumping action for rapid blade advance.
180? rotating head for convenient operation.
Superior guillotine type cutting for less jamming than shear type cutters.
All blades are easily replaceable.
Spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.

■ Accessories :

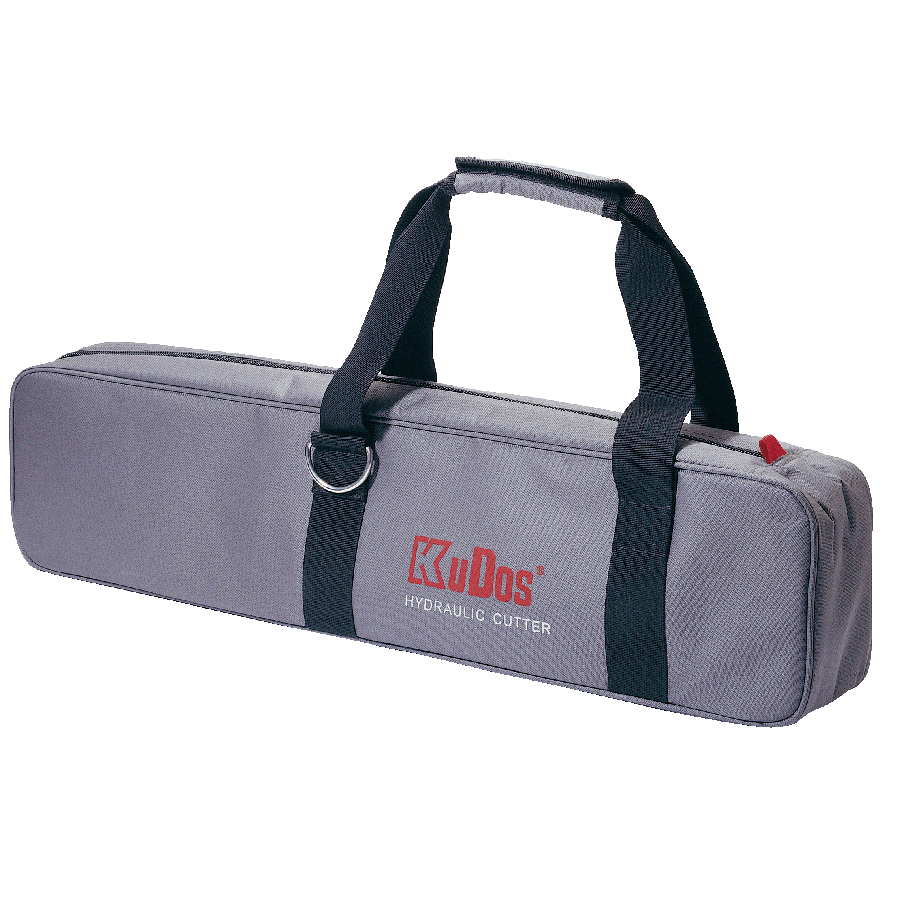

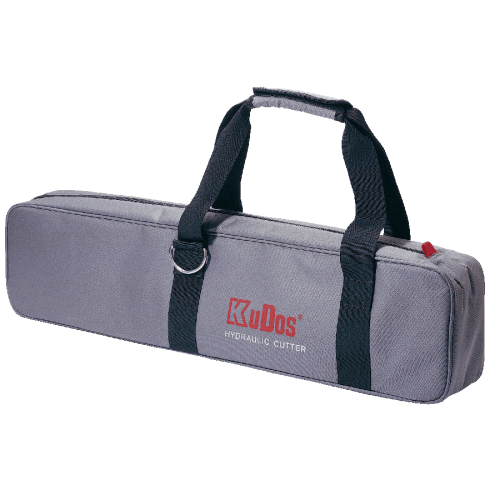

Carrying bag
